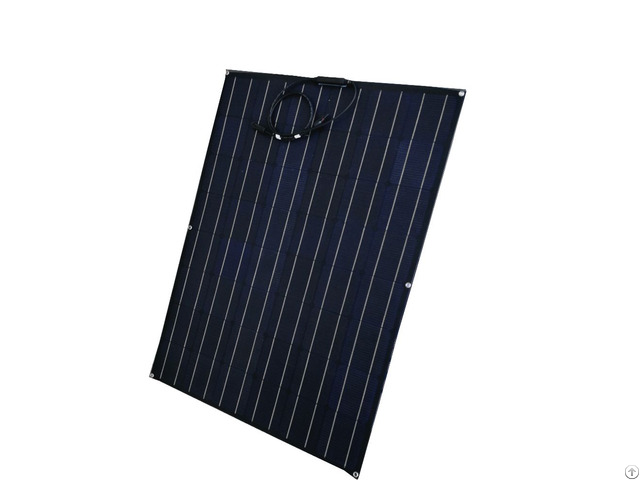

200w Etfe Mono Flexible Solar Panel - China

The Features of Flexible Solar Panels: 1 - The PERC monocrystalline cell, up to 22% efficiency, you will get greater power efficiency even though the ETFE solar panel is no larger than a traditional model

2 - Easy Installation: Holes on solar panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations; Can be affixed by adhesive, grommets or Velcro (with which you can easily attach or detach the panels); Can be installed without costly structural roof reinforcements

3 - Widely Compatibility: Boats/Sailboats, Yachts, Marine applications, RVs, Expedition Vehicles, Commercial Trucks, Trailers, Tent, Caravans, Off-Grid Applications, Remote Communication sites and other irregular surface

4 - Flexible: The ETFE solar panel can be curved to a maximum 30 degree arc, Ideal for storage in tight spaces or crowded areas that are typically off limits for traditional glass and aluminum models

5 - Reliable: The junction box is sealed and waterproof

6 - Productivity: Bypass diodes minimizes performance drop due to partial shade and prevent battery discharge at night

7 - Durable: ETFE Design longer life time of 15-20 years and is Scratches-protected and weather resistant Specifications:

* Maximum Power-Pmax(Wp): 200Wp

* Voltage at Maximum Power-Vmp(V): 24.0V

* Current at Maximum Power-Imp(A): 8.34A * Open Circuit Voltage-Voc(V): 28.80V

* Short Circuit Current-Isc(A): 9.07A

*Maximum system voltage(V): 600V

*Output Interface: MC4 connector

*Dimension: 1305*980*3mm

*Weight: 3.40kg
