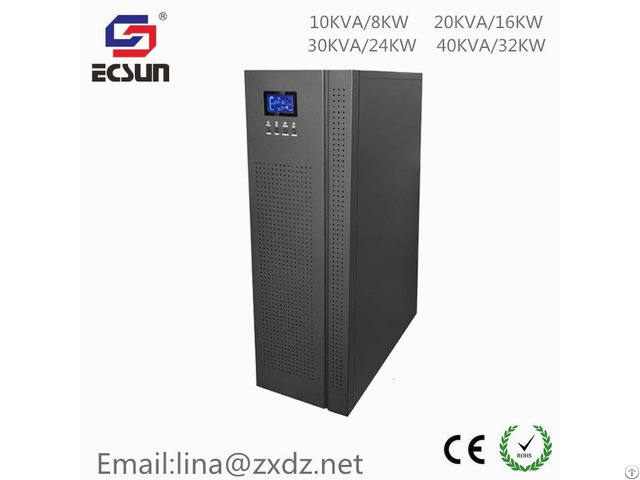

3phase Ups Power System - China

Specification 3 phase INPUT & 3 phase OUTPUT

Capacity 10KVA / 8KW

INPUT Input voltage 3 x 400 VAC (3 Ph + N)

Voltage range 190 - 520 VAC (3-phase) at 50% load; 305 - 478 VAC (3 phase) at 100% load

Frequency range 46 -54Hz or 56 - 64Hz

Power factor ≥ 0.99 @ 100% load

OUTPUT Output voltage three phase 380VAC (3 Ph + N) voltage range (battery mode) ± 1%

Frequency range (synchronous correction range) 46 -54Hz or 56 - 64Hz

Frequency range (battery mode) 50Hz ± 0.1Hz or 60Hz ± 0.1Hz

Surge ratio 3 : 1 (max)

THD ≤ 2% THD (linear load), ≤ 5% THD (unlinear load)

Transfer time 0ms

Wave form (battery mode) pure sine wave

EFFICIENCY AC mode 89%

Battery mode 86%

BATTERY Long running machine quantity 20 piece (optional during 16 - 20 piece) max charging current 4A charging voltage 273VDC ± 1%

DISPLAY INSTRUCTION LCD or LED Load power, battery capacity, AC model, battery model, bypass mode, fault indication

WARNING VOICE Battery mode Sounding every 4 second

Battery with low power Sounding every 1 second

Overload Sounding every 0.5 second

Mistake continuously sounding

PHYSICAL PROPERTIES Long running size (mm) 592 x 250 x 826 N.G. (KG) 38

ENVIRONMENT Humidity 0 - 95% RH @ 0 - 40℃ (no frost)

Noise < 60dB @ 1 meter

CONTROL MANAGEMENT CONTROL MANAGEMENT RS-232 / USB Support Windows 2000 / 2003 / XP / Vista / 2008, Windows 7 / 8, Linux, Unix, and MAC

Optional SNMP Power management support SNMP management and network management

Standard package Wooden case
