400w Off Grid Monocrystalline Solar Panel Starter Kit - China

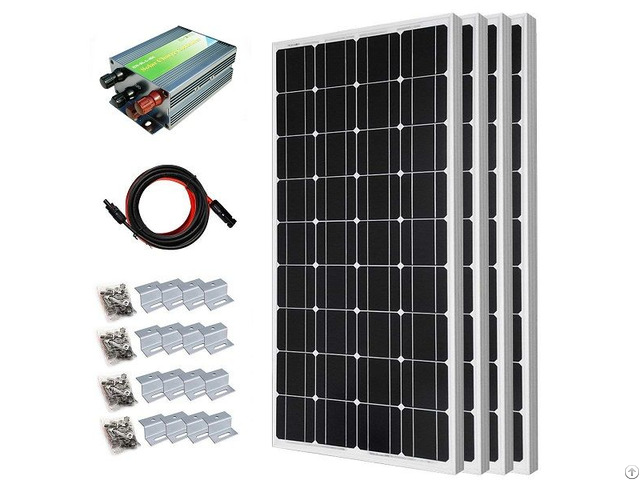

The Eco-Sources 400W solar panel starter kit is perfect for new customers wanting to get a start in the solar system.

The Starter Kit is great for off-grid applications, such as RVs, trailers, boats, sheds, and cabins — providing many benefits, including, but not limited to, quiet power production and grid independence.

Adding a polycrystalline or monocrystalline solar panel kit can extend your travels further than ever before.

Features

1 - Perfect solar panel kit for 12-volt battery charging or multiple panels can be wired in series for 24/48-volt battery charging or for grid-tied applications.

2 - Ideal daily output: 2KWh (depending on the availability of sunlight).

25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate.

3 - Easy to install with Z brackets for mounting and 1 pair 15 feet black & red extension solar cable for connecting solar panel to charge controller conveniently.

Each solar panel comes with a pair of 35 inches cables with MC4 Male/Female connectors for quickly setting up.

4 - Updated 45A PWM charge controller protects the system from over-charge, over-discharge, over-load, and reverse-connection.

5 - Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).

Specification

1 - 100W Mono Solar Panel Rated power: 100W

Voc: 21.6V

Vop: 17.9V

Short circuit current (Isc): 6.13A

Working current (Iop): 5.78A

Output Tolerance: ±3%

Temperate coefficient of Isc: (010+/- 0.01)%/ ℃

Temperate coefficient of Voc: - (0.38 +/-0.01)%/ ℃

Temperate coefficient of power Voc: -0.47%/℃

Temperature range: -40℃ ~ +80℃

Frame: Heavy duty aluminum

Kind of glass and its thickness: Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage: 12V

Dimensions: 47.8*21.4*1.2in(1210x541x 30mm)

Weight: 20.28lbs (9.2kg)

25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty 2.45A PWM Charge Controller Maximum Charging Current: 45A

Maximum Loading Current: 45A

Rated Voltage: 12V/24V

Temperature Compensation: -4.7mv/cell· °C

Charging Circuit Voltage: <200mv Environment Temperature: -15 °C~+60 °C

Charge-Off Voltage: 13.7v/27.4v

Load Off Voltage: 10.5V/21V

Load On Voltage: 12.6V/25.2V

MAX Solar Panel: 540W/1080W

Waterproof Class: IP22 3 - Z Mounting Brackets Perfect for most framed solar panels, these brackets can be bolted to the rear of most framed solar panels allowing the solar panel to be easily attached to a flat surface.

Ideal for caravans, campervans, boat etc.

4 - 1 Pair 15 Feet Red & Black Extension Solar Cable with MC4 Connectors UV and Ozone Resistant 4mm² Solar PV Cable, 1pc 15 Feet Red and 1pc 15 Feet Black.
