40w 12v Completed Led Solar Street Lighting System For Outdoor Yard Garden - China

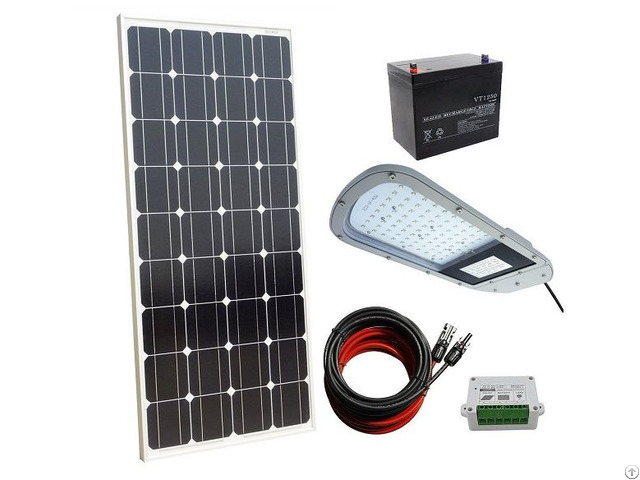

The Eco-Sources completed LED solar street light system including 1pc 100W monocrystalline solar panel, 1pc 40W 12V LED street lamp, 1pc 12V 50AH battery with nuts and bolts, 1pc 15A solar charge controller, 2pcs 16ft solar cable with MC4 connector (1pc 16ft red & 1 pc black cable with with MC4 connector).

Perfect for outdoor, yard, garden lighting.

Features

1 - Composed of solar panel, street light, battery, charge controller and cable adapter, you need to buy a pole and mounting plates to make this system completed.

2 - 100 Watt high-efficiency mono solar panels convert solar energy into electricity, the battery will store the electric power and supply energy to the light during the night.

3 - 40 Watt street light with 80 LEDs, provides higher lumens with lower energy consumption.

Excellent as an area light, parking lot light, patio light or yard light.

4 - Battery dimensions: 10.63inches x 9.85inches x 6.30 inches.

Weight: 31.6lbs.

Battery Standby use voltage: 13.6-13.8v, Cycle use voltage: 14.7-15V

5 - The operation costs are minimized as it’s independent of the utility grid; Required much less maintenance compared to conventional street lights; Risk of accidents is minimized since external wires are eliminated; A nonpolluting source of electricity.

Specification

100W Mono Solar Panel Related power: 100W

Voc: 21.6V

Vop: 17.3V

Short circuit current (Isc): 6.13A

Working current (Iop): 5.78A

Output Tolerance: ±3%

Temperate coefficient of Isc: (010+/- 0.01) %/℃

Temperate coefficient of Voc: – (0.38 +/-0.01) %/℃

Temperate coefficient of power Voc: -0.47%/℃

Temperature range: -40℃to +80℃

Frame: Heavy duty aluminum

Kind of connection: waterproof junction box, can be customized

Guarantee of power: 90% within 10 years 80% within 25 years

Kind of glass and its thickness: Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage: 12V

Size: 47.6*21.3*1.2in (1210*541*30mm) 40W 12V LED Street Light LED Housing: Aluminum, tempered glass

LED quantity: 80pcs*0.5w

LED lumen (Tj = 25℃): 4800lm

Color temperature: 8000K

Operating temperature: -30℃~60℃

Lifespan: > 50, 000Hrs

Lighting zone (height=8meters): 25m*10m

LED Driver Voltage: 12VDC

Waterproof class: IP65

Size: 16.7* 7.6*2.8in (425*193*70mm)

Weight: 4.85lbs (2.2kg) SLA Battery Normal Voltage: 12V

Rated Capacity: 50AH

Constant voltage charge 25℃

Standby use: 13.6-13.8v

Cycle use: 14.7-15V

Initial current: 20A Max

Battery Cell Type: Lead Acid

Battery dimensions: 270mm x 250mm x 160mm (10.63″x 9.85″x 6.30″)

Weight: 14.3kg (31.6lbs) 15A Solar Charge Controller Normal output: 12V/24V (automatic)

Max charge/Load current: 15A

Max Solar Panel: 270W/540W

Timer/Light sensor: adjustable

Size: 4.4*2.36*1.32in

Weight: 3.9 ounces (110g)
