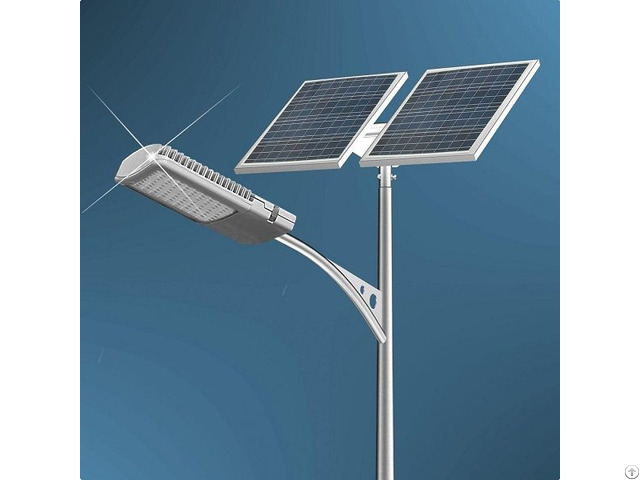

40w Solar Led Street Light Completed System - China

The Eco-Sources completed LED solar street light system composed of 2pcs 100 Watts solar panel, 40W 12V LED street lamp, 15A PWM charge controller, which means a professional grade street solar lighting system for yard patio driveway garage house porch pool sign barn.

Features

1 - Comes with solar panel, street light and charge controller, you need to buy extra electric cable connectors, 12v lithium battery, a pole and mounting plates to make this system completed.

Two solar panels should be wired in parallel for 12v battery charging.

2 - 15A charge controller is 12v/24v autodetect, you need to connect it to 12v battery firstly, then connect solar panels and street light with the controller.

3 - 100 Watt high-efficiency poly solar panels convert solar energy into electricity, the battery will store the electric power and supply energy to the light during the night.

4 - 40 Watt street light with 80 LEDs, provides higher lumens with lower energy consumption.

Excellent as an area light, parking lot light, patio light or yard light.

5 - The operation costs are minimized as it’s independent of the utility grid; Required much less maintenance compared to conventional street lights; Risk of accidents is minimized since external wires are eliminated; A nonpolluting source of electricity.

Specification

100W Poly Solar Panel Related power: 100W

Maximum/Peak Voltage(Vmp): 21.6V

Open Circuit Voltage(Voc): 18V

Maximum/Peak Current(Imp): 6.11A

Short circuit current (Isc): 5.55A

Output Tolerance: ±3%

Temperate coefficient of Isc: (0.10+/- 0.01) %/℃

Temperate coefficient of Voc: – (0.38 +/-0.01) %/℃

Temperate coefficient of power Voc: -0.47%/℃

Temperature range: -40℃~+80℃

Frame: Heavy duty aluminum

Guarantee of power: 90% within 10 years, 80% within 25 years

Defective Warranty: 5 year warranty against material and workmanship

Kind of glass and its thickness: Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage: 12V

Size: 39.3*26.2*1.38in (996*665*35mm) 40W 12V Solar Street Light LED Housing: aluminum, tempered glass

LED quantity: 80pcs*0.5w

LED lumen (Tj = 25℃): 4800lm

Color temperature: 8000K

Operating temperature: -30℃~60℃

Lifespan: > 50, 000Hrs

Lighting zone (height=8meters): 25m*10m

LED Driver Voltage: 12VDC

Waterproof class: IP65

Size: 16.7* 7.6*2.8in (425*193*70mm)

Weight: 4.85lbs (2.2kg) 15A Solar Charge Controller Normal output: 12V/24V (automatic)

Max charge/Load current: 15A

Max Solar Panel: 270W/540W

Timer/Light sensor: adjustable

Size: 4.4*2.36*1.32in

Weight: 3.9 ounces (110g)
