Key Specifications/Special Features:

1 - Features: MS-SP6-60-BIPV: BIPV Mono Crystalline Solar Module 60 cells The 60-celled MS-SP6-60-BIPV monocrystalline modules produced by Macsun Solar (power output 270Wp up to285Wp, black modules up to 290Wp) are best deployed in larger installations requiring higher power outputs.

•The MS-SP6-60-BIPV series is compliant to high international standards and features a 25-year linear warranty on product outputs which further ensures your return on investments over time.

Certified according to EN 60068-2-68, it is resistant to the impact of sand and dust and is thus a valuable choice for projects in challenging environments.

High module efficiency, up to 17.40%

Industry-leading 25-year linear warranty on outputs Higher power outputs 2 - ELECTRICAL CHARACTERISTICS AT STC TYPE: MS-SP6-60-BIPV280M

Maximum Power Pmax(W) 280W

Tolerance Value for Power % 0~+3%

Maximum Power Voltage(V): 33.41

Maximum Power Current(A): 8.77

Open Circuit Voltage(V): 38.40

Short Circuit Current(A): 9.44

Module Efficiency: 17.4% 3 - MECHANICAL SPECIFICATIONS Solar cell: 156x156mm, 3BB/4BB Monocrystalline cell, 6 "(6x10)

Junction box: IP67, combined with 3 by-pass diodes

Front Glass Thickness: High transparency, low iron, tempered glass 3.2 mm(AR-coating), Double Class

Connecting Cable/Connector: 4mm2, 900 mm Cable, MC4-compatible

Demension: 1658*992*6.5 mm

Weight: 24 kg±5%.

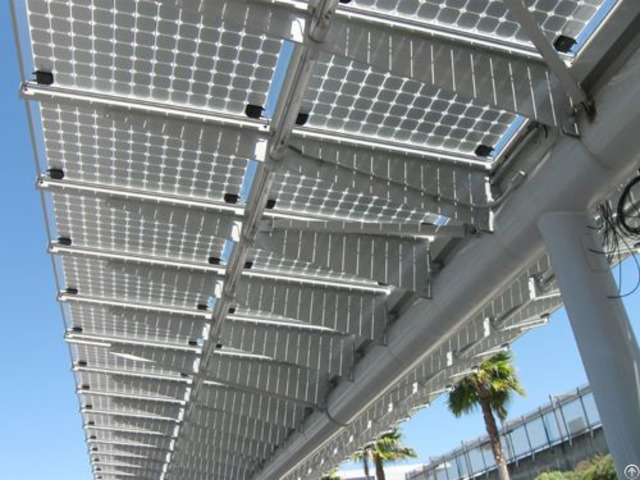

3 - BIPV Introduction Architectural aesthetics

Though design, junction boxes, cable hidden in the curtain wall structure, does not affect the exterior of the building, to achieve the purpose of building the perfect combination.

Architectural lighting

By adjusting the arrangement of cells to reach a specifica transmission rate, to comply with the requirements of architectural glazing.

Safety performance

Made of two or more sheets of tempered glass and photovoltaic PVB, with an excellent impact resistance, durability, light transmittance and security.

Convenient installation

BIPV is double glass compoments and glass curtain wall closely intergrated.

Installation techniques and methods are the same as the ordinary glass curtain wall, it can fully meet the connenient installation requirement.

Long service life

BIPV glazing solar module used in the PVB ratio of EVA has better heat, cold, moisture and antiaging, impact resistance, so that the components have a longer service life.

Green

BIPV components combined in the building, do not to need to occupy the land area, noise-free, pollution-free.

BIPV building can be spontaneous personal use electricity.

reduce costs and loss of power transmission.
