Eco Worthy 400w Off Grid Solar Kit 4pcs 100w Panels Combiner Box - USA

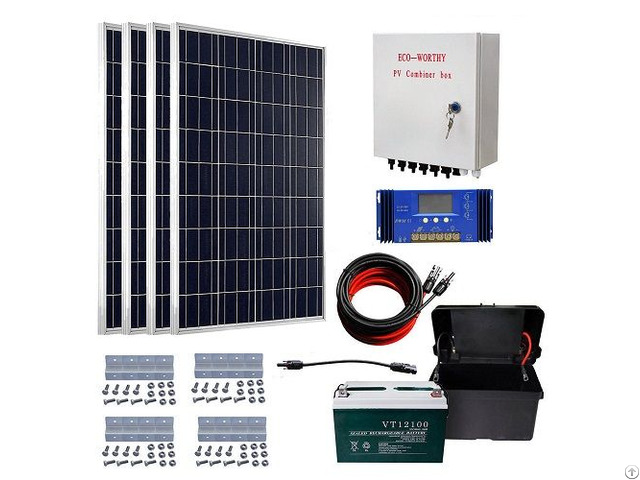

Package Included: 4pcs 100W poly solar panel

1pc 6-string PV combiner box

1pc 100aH battery with battery box

1pc 60A solar charge controller

2pcs 5m(16.4') 4mm² solar cables (totally 32.8')

4sets Z style mounting kit Only USA stock available, Usually Ships in 3 to 7 Business Days 100W Poly Solar Panel This ECO-WORTHY 's 100W poly solar panel with its high power output and the robust design the right solution for a stand-alone system.

Even on cloudy days, the poly solar panel delivers a high energy yield.

The panel is covered by a special tempered glass to protect against environmental conditions such as hail, snow, and ice.

The panel frame made of anodized aluminum ensures the stability.

1 - Basic component for the resident solar system.

2 - Widely used on marine, dry camp, Garden watering, and other off-grid applications.

3 - Easy installation with the pre-drilled hole.

By-Pass Diode minimized the impact of shade.

4 - Waterproof IP-65 Rated Junction Box: Advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets).

Resistance to salt corrosion and humidity.

5 - Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).

6 - Warranty: 5-year material and workmanship warranty.

100W Poly Solar Panel Specification

Rated power 100W

Voc 22.41V

Vop 17.9V

Short circuit current (Isc) 6.2A

Working current (Iop) 5.59A

Output tolerance ±3%

Temperate coefficient of Isc (010+/- 0.01 )%/ ℃

Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃ to +80℃

Frame Heavy duty aluminum

Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage 12V

Dimensions (L x W x H)mm 665*996*35mm(26.16*39.3*1 .

37 in)

Weight 24lbs(11Kg)

Warranty 25-year transferable power output warranty: 5-year/95% efficiency rate; 10-year/90% efficiency rate, 25-year/80% efficiency rate ;

5-year material and workmanship warranty;

6-String PV Combiner Box 1 - 6 String Configuration, 10A Circuit Breakers.

2 - Each string continuous duty rated at 250 Vdc.

3 - Photovoltaic High-Voltage protection.

4 - Each String with high-voltage fuses, over-voltage & over-current protection.

5 - Lightning arrester for both poles.

6 - Anti-backflow diodes, anti-backflow & anti-reverse protection.

7 - Circuit breaker output control, short-circuit fault protection, safe and reliable.

8 - Protection class IP65 for outdoor installation requirements.

9 - Touch-safe circuit breakers & non-conductive box.

10 - All UL compliant components used.

11 - Includes output cable glands & safety labels.

12 - Includes lightning/surge protection module (1000V).

6-String PV Combiner Box Specifications

Model ECO—PV6

Input Circuits/Circuit Breakers 6

Circuit Breaker Rating 10A

Max Total DC Output Current 60A

Max Input Voltage Rating 250V

Max Output Voltage Rating 250V

Protection Grade IP65

Operational Environment Temperature -30~+70℃

Relative Humidity 0-95%

Cooling Method Natural Cooling

Surge Lightning Protection Yes

Dimension 260*320*115mm(10.3"x12.6" x4.5")

Weight 5.1kg (11.22lbs)

100AH Battery With Battery Box 1 - This 100Ah 12V acid battery with battery box is with an LCD display which can show the electricity and voltage.

2 - Sealed and Maintenance-free Operation.

3 - High Quality and High Reliability.

4 - Low power consumption.

5 - Long Service Life 100AH Battery With Battery Box Power Bank Specification

Brands ECO-WORTHY

Capacity 100AH/20H

Type Lead Acid

Size 330*175*190 mm(13"*6.9"*7.5")

Voltage 12V

Weight 28kg

Application Home/Garden Parameter of Display Module Min Typical Max Unit Figure

Input Volt 8 65 V Power for Work 4 6 MA 4 6 MA With the backlight on

Voltage Accuracy 15 ±0.5 % % Power for Sleep 15 20 UA 15 20 UA Working Temperature -5 25 20 ℃ Usage Instructions:
