Eco Worthy 6 Inch 150mm Stoke Linear Actuator 1500n 12v 5 7mm S - USA

price: 41.31 Dollar US$

Eco Worthy 6 Inch 150mm Stoke Linear Actuator 1500n 12v 5 7mm S

Products Photos Catalog Eco Worthy 150mm Stoke Photos Catalog

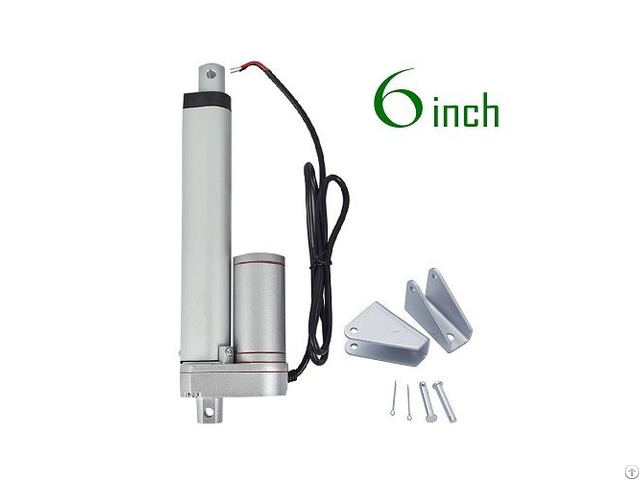

Package Included 1pc ECO-WORTHY 6" (150mm) Stoke Linear Actuator 1500N 12V 5.7mm/s with mouting bracket ECO-WORTHY 6" (150mm) Stoke Linear Actuator 1500N 12V 5.7mm/s Fast Delivery ECO-WORTHY 's linear actuator is widely used in number of industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.

With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt-ability etc.

Features 1 - Features an all-metal housing and is water-resistant and sealed against dust for rugged durability.

2 - 12V motor has gearbox and is rated to hold up to 330 lbs.

when not moving.

3 - Unit can be controlled with a double pole, double throw switch or with the built-in position sensor and optional linear actuator programmable controller.

4 - Quiet clean and energy efficient operation

5 - Accurately positions the load at variable and repeatable locations within the full stroke

6 - Warranty: 1 years ECO-WORTHY 6 inch (150mm) Stoke Linear Actuator 1500N 12V 5.7mm/s Specifications

Type 12V 2 inches 12V 4 inches 12V 6 inches 12V 8 inches 12V 10 inches 12V 12 inches 12V 14 inches 12V 16 inches 12V 18 inches

Stroke Length (S) 50MM 100MM 150MM 200MM 250MM 300MM 350MM 400MM 450MM

Voltage 12V 12V 12V 12V 12V 12V 12v 12V 12V

Stroke Length (inch) 2inches 4inches 6inches 8inches 10inches 12inches 14inches 16inches 18inches

Min.

Installation Distance(RL) RL=S+105MM

Minimum intallation distance 6.11inches 8.08inches 10.24inches 12.60inches 14.57inches 16.54inches 18.50inches 18.51inches 23.62inches

Starting Current (No-Load) 0.8A

Minimum Current 0.8A

Maximum Current 3A

Max.

Load Push 1500N, Pull 1200N

Duty Cycle 15% (stop for 17 minutes after continuously working 3 minutes)

Limit Switch Built in, Factory Preset

Operation Temperature -25℃-65℃

Protection Class IP54

Rear Connector No Rotation

Color Silver

Dimension ECO-WORTHY 6 inch(150mm) Stoke Linear Actuator Dimension Linear Actuator Dimension Application It can be used on electric booth lifting rod, electric sofa, the medical electric bed, tripod of the camera, the wedding system, industrial electric lifting system, electric lifting lever.
