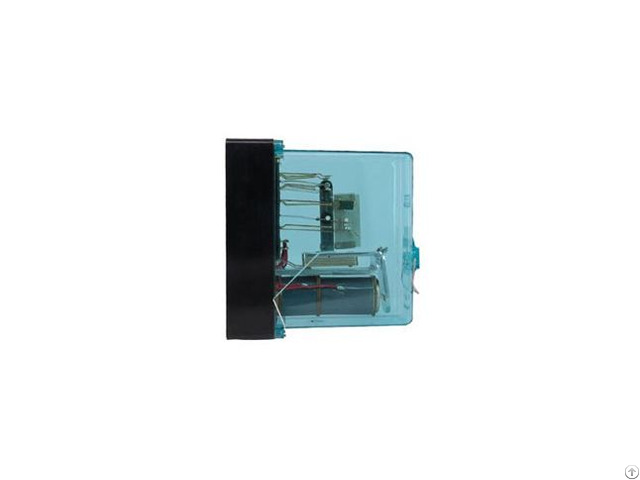

Jwjxc 480 Stepless Reinforced Contact Slow Release Relay - China

product description JWJXC-480 stepless enhanced contact slow release relay is an important component in interlocking equipment, and is the main equipment to ensure the safe operation of the system.

The signal relay can control the switching, locking and unlocking of the turnout, and control the opening and closing of the signal machine, etc.

.

Its reliability, availability, maintainability and the entire sauna line are the keys to the safety of railway transportation and operational services.

The automatic control systems in various fields all use relays.

Relays are widely used in railway signal technology, called signal relays, which are important components in railway signal technology.

It plays an important role no matter as the core component of the relay signal system or as the interface component of the electronic or computer signal system.

The reliability of the relay action directly affects the reliability and safety of the signal system.

Product function It is a commonly used electrical appliance in automatic control systems.

It is used to connect and disconnect circuits, to issue control commands and reflect the status of equipment to form automatic control and remote control circuits.

The signal relay is an important component in the interlocking equipment, and is the main equipment to ensure the safe operation of the system.

The signal relay can control the switching of the turnout, lock and unlock the route, and control the opening and closing of the signal machine.

Its reliability, availability, maintainability and the entire sauna line are the keys to the safety of railway transportation and operational services.

Product Usage The JWJXC-480 type stepless strengthened contact relay is used as a phase failure supervision relay in the power supply screen.

Applicable environment a) Ambient temperature: -40℃~+60℃; b) Relative humidity: not more than 90% (temperature +25℃); C) Air pressure: not less than 70kPa (equivalent to an altitude below 3000m); d) Vibration: the vibration frequency is not more than 15Hz, and the amplitude is not more than 0.45mm; e) Working position: horizontal; f) There should be no harmful gas causing explosion hazard around, and good dust-proof measures should be taken.

Executive standard GB/T 7417-2010 "Railway Signal AX Series Relay" Product Features Mechanical properties Number of contact groups: 2QH, 2QHJ; Identification pin number: 15, 51; Ordinary contact gap: not less than 3mm; Strengthen the contact gap: not less than 5mm; Ordinary pallet gap: not less than 0.35mm; Reinforce the gap of the support plate: not less than 0.1-0.3mm; Ordinary contact pressure: dynamic closing or positioning contact not less than 150mN; dynamic breaking or reverse position contact not less than 150mN; Strengthen the contact pressure: the dynamic closing or positioning contact is not less than 400mN; the dynamic breaking or reverse position contact is not less than 300mN; Contact uniformity error: not more than 0.20mm.

Electrical characteristics Coil resistance: 240 (1±10%) Ω×2 The coils are connected in series, connect 2, 3 to use 1, 4; Rated value: DC24V; Magnetizing value: DC64V; Working value: not more than DC16V; Release value: not less than DC4.8V; Reverse working value: not more than DC17.6V; Contact resistance: not more than 0.10Ω.

Insulation withstand voltage Under the standard atmospheric conditions of the test, the insulation resistance of the relay should not be less than 100MQ.

Under the condition that the air pressure is not lower than 86kPa (equivalent to the altitude below 1000m), the insulation withstand voltage of the relay should be able to withstand AC sine wave 50Hz, 2000V rms voltage, there should be no breakdown flashover after 1min, the voltage when repeating the test Should be 75% of the original test voltage value.

Installation Precautions 1 - When installing the relay, make sure that the insulation interval between the sockets is intact, the socket hanging spring is intact, and the socket identification pin is in the correct position and should not be missing.

2 - Pay attention to the relative position between the relay and the socket when plugging in the relay to avoid damage to the relay or socket during plugging.

3 - When repairing and replacing the relay, first remove the fixed relay spring, and then pull out the relay.

Do not use excessive force or shake left and right when pulling it out, as it may damage the relay or socket.

Faults and troubleshooting methods 1 - The relay contact has no output The analysis and elimination methods of the relay contact without output are as follows: (1) Make sure that the relay and socket should be reliably plugged in; (2) Check that the relay should not be mechanically blocked.

If foreign matter in the relay blocks the armature, the armature cannot work reliably (forward rotation) or release (reverse rotation), and the contacts cannot be reliably contacted;
