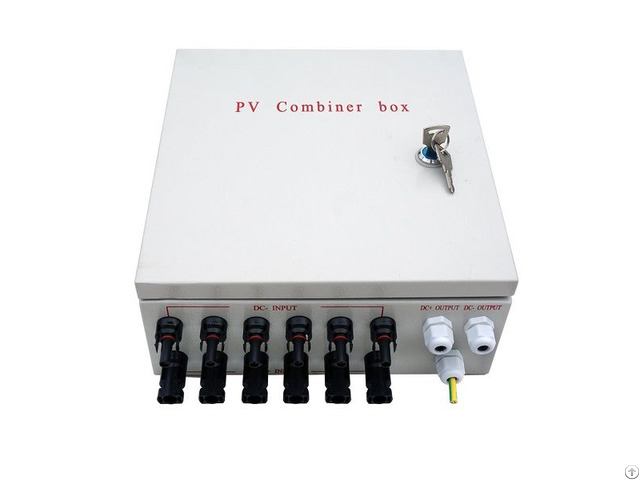

Pre Wired 6 String Solar Panel Combiner Box With 10a Circuit Breakers - China

Solar photovoltaic array combiners or solar panel combiner boxes are commonly used to combine several solar panels (or strings of panels) into a common bus.

They are basically junction boxes that are specially designed for the types of wiring used in PV systems.

Array combiners are usually needed for larger systems, but even in small PV systems it can make wiring, monitoring, and future troubleshooting much easier.

Features

1 - 6 string configuration, 10A circuit breakers.

2 - Each string continuous duty rated at 250 Vdc.

3 - Photovoltaic high-voltage protection.

4 - Each String with high-voltage fuses, over-voltage & over-current protection.

5 - Lightning arrester for both poles.

6 - Anti-backflow diodes, anti-backflow & anti-reverse protection.

7 - Circuit breaker output control, short-circuit fault protection, safe and reliable.

8 - Protection class IP65 for outdoor installation requirements.

9 - Touch-safe circuit breakers & non-conductive box.

10 - All UL compliant components used.

11 - Includes output cable glands & safety labels.

12 - Includes lightning/surge protection module (1000V).

Specification

Model ECO—PV6

Input Circuits/Circuit Breakers 6

Circuit Breaker Rating 10A

Max Total DC Output Current 60A

Max Input Voltage Rating 250V

Max Output Voltage Rating 250V

Protection Grade IP65

Operational Environment Temperature -30~+70℃

Relative Humidity 0-95%

Cooling Method Natural Cooling

Surge Lightning Protection Yes

Dimension 260*320*115mm(10.3″x12 - 6″x4.5″)

Weight 5.1kg (11.22lbs)

Application

First Stage convergence for PV arrays, optimize solar system wiring to improve the PV power efficiency.
