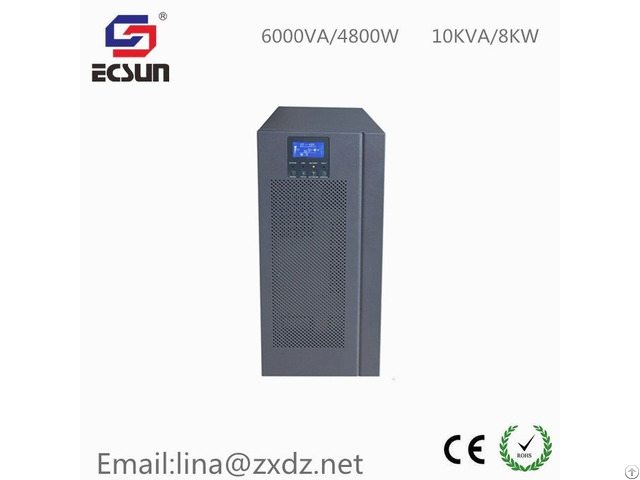

Uninterruptible Power Source Singal Phase Online Ups 10kva High Frequency - China

Rated output capacity 10KVA/8KW

Rated Rated voltage 220VAC

AC input Input voltage range 120-275VAC±5 Input frequency range (45-55)±0.5Hz bypass voltage 80VACx(1±5%)-285VACx(1± 5%)

Battery Input battery group voltage 192V battery method Internal Battery capacity & quantity 12V 7ah X16 PCS backup time(half/full) half load≥10 minutes, full load≥5minutes(standard) maximum input current when power on <150% of rated current battery charging time 5hours can charge to 90%(standard) depend on the capacity of external battery group(long-running)

AC output Output voltage 220VAC±1%(invert output) Output frequency 50±5Hz(when AC input is normal) 50Hz±1% (when ac inout is abnormal ) wave form sine wave THD<3%( linear load) sine waveTHD<8%(Nonlinear load) output power factor 0.8 Overload ability 130% load lasting not less than 30s, Recovery point is 90% load Output current peak coefficient 3: 01 Overload Protection 105-125%, Transfer to Bypass after 1 Min Transfer time between AC and Battery 0ms

LCD Indication Input and output voltage, battery level, load level, frequency, data setting Communication and monitoring functions RS232(can transfer to 485, Dry node, Smart slot(can expand to SNMP, SMS and other monitoring methods)

Tower N.

W(KG) 67.5 G.

W(KG) 73.5 Unit Size(W X H X D)mm 515*250*620 Carton Size(W X H X D)mm 660*365*730
