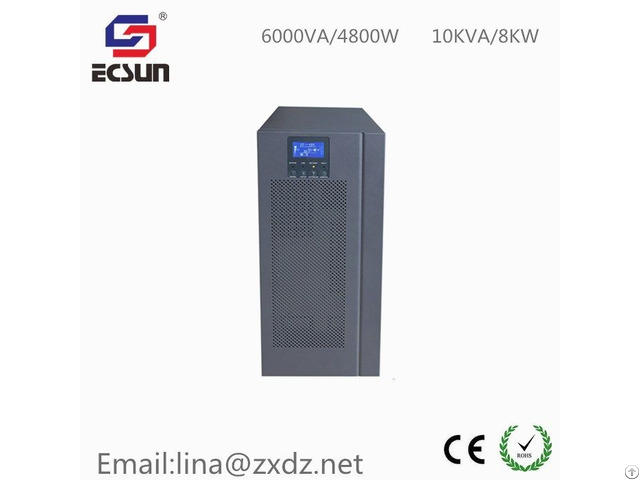

Voltage Range 120 275 Vac Ups Uninterruptible Power Source - China

Rated output capacity 6KVA/4.8KW

Rated Rated voltage 220VAC

AC input Input voltage range 120-275VAC±5 Input frequency range (45-55)±0.5Hz bypass voltage 80VACx(1±5%)-285VACx(1± 5%)

Battery Input battery group voltage 192V battery method Internal Battery capacity & quantity 12V 7ah X16 PCS backup time(half/full) half load≥10 minutes, full load≥5minutes(standard) maximum input current when power on <150% of rated current battery charging time 5hours can charge to 90%(standard) depend on the capacity of external battery group(long-running)

AC output Output voltage 220VAC±1%(invert output) Output frequency 50±5Hz(when AC input is normal) 50Hz±1% (when ac inout is abnormal ) wave form sine wave THD<3%( linear load) sine waveTHD<8%(Nonlinear load) output power factor 0.8 Overload Protection 105-125%, Transfer to Bypass after 1 Min Output current peak coefficient 3: 01 Transfer time between AC and Battery 0ms

Company Contact:

• Posted By: Shenzhen Zhengxin(Ecsun) Electronic Co., Ltd

• Phone: 15919910450

• Address: Block 10, Jinfeng Industrial Park, Tangwei 3rd Industrial Zone, Gongming Street, Guangming District, Shenzhen , China

• Email:

• Website: https://www.de-sun.net

• Business Description: Shenzhen Zhengxin Electronics Co., Ltd. is one of the Professional UPS (Uninterruptable Power Supply) Manufacturer in China with our own capability in R&D, Manufacturing, Marketing and After-Sales Service or One Stop Solution Centre for UPS Products, our main business is including UPS (Uninterruptible Power Supply), UPS Power System for Power Plant, EPS (Emergency Power Supply), Inverter Power Supply, Grid Inverter, PV (Photovoltaic) Product Series, AC/DC Integrated System, Power Supply Monitoring System, Battery Control System, APF (Active Power Filter) and others Green Energy Products in order to provide the consumers with High Quality and All Aspect of Power Supply Devices.

  Located in Guangming District which is around 45mins from Shenzhen Airport and also around 1.5hrs from Hong Kong Airport and also very near to Shenzhen Yantian Port for the delivery.
