Class 5 Bs En 60332 1 2 Pvc Electrical Cable House Wiring Domestic Appliances - China
price: check with company for price

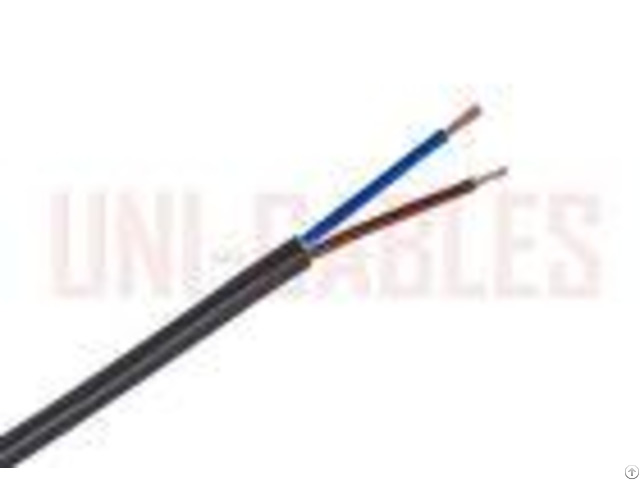

BS EN 50525-2-11 PVC Electrical Cable Type 318-Y 500V PVC House Wiring Cable APPLICATION Ordinary duty PVC cable for use in domestic appliances, kitchens and offices.
For use with light portable appliances such as radios, table lamps and office equipment.
Generally unsuitable for outdoor use or industrial applications.
CONSTRUCTION Conductor Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360) Insulation PVC (Polyvinyl Chloride) Type TI2 according to BS EN 50363 Sheath PVC (Polyvinyl Chloride) Type TM2 according to BS EN 50363 CABLE STANDARDS BS EN 50525-2-11 (previously BS 6500), BS EN/IEC 60332-1-2 CHARACTERISTICS Voltage Rating (Uo/U) 300/500V DIMENSIONS - - - - UNIQUE PART NO.
| NO.
OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT | mm | mm | mm | kg/km | UNRVV2X0.75 | 2 | 0.75 | 0.6 | 6.3 | 57 | UNRVV2X1 | 2 | 1 | 0.6 | 6.6 | 65 | UNRVV2X1.5 | 2 | 1.5 | 0.7 | 7.4 | 84 | UNRVV2X2.5 | 2 | 2.5 | 0.8 | 9.1 | 130 | UNRVV3X0.75 | 3 | 0.75 | 0.6 | 6.7 | 68 | UNRVV3X1 | 3 | 1 | 0.6 | 7 | 78 | UNRVV3X1.5 | 3 | 1.5 | 0.7 | 8.1 | 108 | UNRVV3X2.5 | 3 | 2.5 | 0.8 | 9.9 | 163 | UNRVV3X4 | 3 | 4 | 0.8 | 11.3 | 227 | UNRVV4X0.75 | 4 | 0.75 | 0.6 | 7.3 | 82 | UNRVV4X1 | 4 | 1 | 0.6 | 7.9 | 100 | UNRVV4X1.5 | 4 | 1.5 | 0.7 | 9 | 134 | UNRVV4X2.5 | 4 | 2.5 | 0.8 | 10.8 | 201 | UNRVV5X0.75 | 5 | 0.75 | 0.6 | 8.1 | 102 | UNRVV5X1 | 5 | 1 | 0.6 | 8.6 | 120 | UNRVV5X1.5 | 5 | 1.5 | 0.7 | 10 | 166 | - - - - Color Codes - - - - COLOUR | Black | White | CODE | BK | WH | - - - - CONDUCTORS Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables - - - - NOMINAL CROSS SECTIONAL AREA mm | MAXIMUM DIAMETER OF WIRES IN CONDUCTOR mm | MAXIMUM RESISTANCE OF CONDUCTOR AT 20C | Plain Wires (ohms/km) | 0.75 | 0.21 | 26 | 1 | 0.21 | 19.5 | 1.5 | 0.26 | 13.3 | 2.5 | 0.26 | 7.98 | 4 | 0.31 | 4.95 | - - - - ELECTRICAL CHARACTERISTICS Current Carrying Capacity and Mass Supportable - - - - NOMINAL CROSS SECTIONAL AREA mm | CURRENT CARRYING CAPACITY Amps | MAXIMUM MASS SUPPORTABLE BY TWIN FLEXIBLE CORD | Single-Phase AC | Three-Phase AC | kg | 0.75 | 6 | 6 | 3 | 1 | 10 | 10 | 5 | 1.5 | 16 | 16 | 5 | 2.5 | 25 | 20 | 5 | 4 | 32 | 25 | 5 | - - - - Voltage Drop - - - - NOMINAL CROSS SECTIONAL AREA | DC OR SINGLE-PHASE AC mV/A/m | THREE-PHASE AC mV/A/m | mm | 0.75 | 62 | 54 | 1 | 46 | 40 | 1.5 | 32 | 27 | 2.5 | 19 | 16 | 4 | 12 | 10 | - - - -
Company Contact:
- Phone: 86-27-82757025
- Address: Room B813,No.61, Yejin Avenue, Qingshan District,Wuhan City, Hubei Province, China, Wuhan , Hubei , China
- Email:
Published date: March 20, 2018
- Business Description: UNI-CABLES, Brand owned by a group company of WUMEE, which now has four factories in China.
Wuhan Unique Electric Wire and Cable Co., Ltd, Guangdong Unique Cable Co., Ltd, Guangxi Unique Aluminum Co., Ltd, Wuhan Unique No.
2 Factory.
