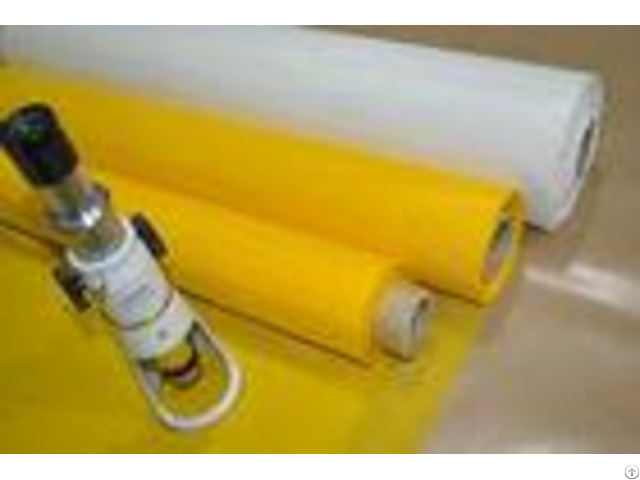

Ddp High Tension Polyester Screen Printing Mesh Fabric Yellow Color - China

DDP High TensionYellow Monofilament Polyester Mesh 32t - 200t 115-365cm Width Application of the polyester screen printing mesh DDP high tension Black Polyester Monofilament Screen Printing Mesh, 32T-200T is widely used in Textile printing, T-shirt printing, ceramic printing, glass printing and PCB printing industry.

Specification of polyester screen printing mesh - - - -

COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM/CM) | MAX TEN SION(N/CM) | 100 | 39 | 55 | 176 | 56 | 88 | 70 | 35-37 | 100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 | 110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 | 120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 | 120 | 48 | 70 | 138 | 44 | 135 | 59 | 30-34 | 135 | 53 | 45*2 | 133 | 57 | 79 | 43 | 25-30 | 135 | 54 | 55 | 121 | 50 | 86 | 41 | 26-31 | 150 | 61 | 64 | 100 | 38 | 100 | 42 | 26-31 | 160 | 98 | 55 | 101 | 42 | 98 | 41 | 25-30 | 160 | 85 | 64 | 92 | 35 | 120 | 42 | 30-34 | 180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 | 180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 | 200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 | 195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 | 230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 | 250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 | 280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 | 305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 | 355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 | 380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 | 420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 | 460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 | - - - - Packing of DDP high tension Black Polyester Monofilament Screen Printing Mesh, 32T-200T :

# mesh rolls in a pp bag # waterproof bags outside # package belt strengthen MOQ and sample of DDP high tension Black Polyester Monofilament Screen Printing Mesh, 32T-200T : Usually the MOQ is 30meter, if quantity is less that that sometimes is also OK, before that please contact with Cathy, Ci.

Sample with size not more than 2meter can be supplied free, freight should be paid buyer.

Service of DDP high tension Black Polyester Monofilament Screen Printing Mesh, 32T-200T Pre sale service:

# Inquiry and consulting support.

# Sample testing support.

# View our Factory.

After sale service

# Sending tracking number soon.

# Training how to use it.

# Changing for new if dissatisfaction Tips of Best for DDP high tension Black Polyester Monofilament Screen Printing Mesh, 32T-200T for work: # 20 and 40 mesh is used mostly for glitter inks that need a very open mesh for printing.

# 60 mesh is usually used for printing smaller glitter and most shimmer inks.

# 80 mesh is also used for printing shimmer inks and for laying down thick layers of ink for high-density printing.

It also works well for printing foil adhesive.

# 120 mesh is one of the most rifely mesh sizes in screen printing.

It works great for printing white ink and other colored inks that have a thicker viscosity.

# 155 mesh is great for general purpose textile printing with basic to semi-fine detail.

It will hold a little finer detail than a 110 mesh while also working well with thinner inks.

# 230 mesh is great for high-end fine detail printing.

A 230 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh.

The yellow color prevents light from reflecting through the threads of the mesh and keeps a sharper image when burning.

# 280 mesh screens are great for high-end fine detail printing.

A 280 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh.
