H03vv Flexible Light Duty Cable F Bs En 50525 2 11 For Connecting Domestic Properties - China

price: check with company for price

H03vv Flexible Light Duty Cable F Bs En 50525 2 11 For Connecting Domestic Properties

Products Photos Catalog H03vv Flexible Light Photos Catalog

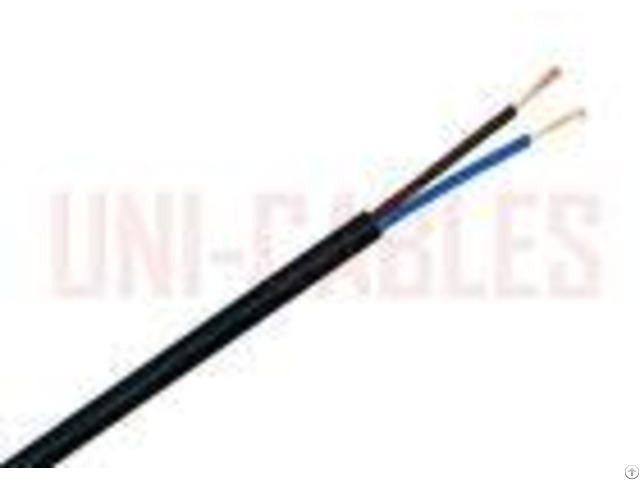

H03VV-F PVC Electrical Cable Light Duty Flexible Cable For Connecting APPLICATION H03VV-F under the harmonised European Standard, is a light duty flexible cable designed for use in domestic properties, offices and kitchens.

It is suitable for connecting devices with a voltage rating of 300V that are subjected to low mechanical stress such as table lamps, radios and office equipment.

CONSTRUCTION Conductor Class 5 flexible copper conductor Insulation PVC/TI2 Sheath PVC/TM2 CABLE STANDARDS BS EN 50525-2-11 (previously BS 6500, CENELEC HD21.5), VDE 281, BS EN/IEC 60332-1-2 DIMENSIONS - - - - UNIQUE PART NO.

| NO.

OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL THICKNESS OF SHEATH | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT | mm | mm | mm | mm | kg/km | H03VV-F2X0.5 | 2 | 0.5 | 0.5 | 0.6 | 5.0 | 37 | H03VV-F2X0.75 | 2 | 0.75 | 0.5 | 0.6 | 5.5 | 46 | H03VV-F3X0.5 | 3 | 0.5 | 0.5 | 0.6 | 5.3 | 44 | H03VV-F3X0.75 | 3 | 0.75 | 0.5 | 0.6 | 5.8 | 55 | H03VV-F4X0.5 | 4 | 0.5 | 0.5 | 0.6 | 5.8 | 54 | - - - - Colour Codes - - - - COLOUR | Black | White | CODE | BK | WH | - - - - CONDUCTORS Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables - - - - NOMINAL CROSS SECTIONAL AREA mm | MAXIMUM DIAMETER OF WIRES IN CONDUCTOR mm | MAXIMUM RESISTANCE OF CONDUCTOR AT 20C | Plain Wires ohms/km | 0.5 | 0.21 | 39 | 0.75 | 0.21 | 26 | - - - - ELECTRICAL CHARACTERISTICS Current Carrying Capacity and Mass Supportable - - - - NOMINAL CROSS SECTIONAL AREA mm | CURRENT CARRYING CAPACITY | MAXIMUM MASS SUPPORTABLE BY TWIN FLEXIBLE CORD kg | Single-Phase AC Amps | Three-Phase AC Amps | 0.5 | 3 | 3 | 2 | 0.75 | 6 | 6 | 3 | - - - - Voltage Drop - - - - NOMINAL CROSS SECTIONAL AREA mm | DC OR SINGLE-PHASE AC mV/A/m | THREE-PHASE AC mV/A/m | 0.5 | 93 | 80 | 0.75 | 62 | 54 | - - - -


Company Contact:


  • Phone: 86-27-82757025

  • Address: Room B813,No.61, Yejin Avenue, Qingshan District,Wuhan City, Hubei Province, China, Wuhan , Hubei , China

  • Email: Email


Published date: March 20, 2018

  • Business Description: UNI-CABLES, Brand owned by a group company of WUMEE, which now has four factories in China.

    Wuhan Unique Electric Wire and Cable Co., Ltd, Guangdong Unique Cable Co., Ltd, Guangxi Unique Aluminum Co., Ltd, Wuhan Unique No.

    2 Factory.
