H1z2z2 K Class 5 Solar Power Cables Acc To Din En 50618 For Photovoltaic System - China

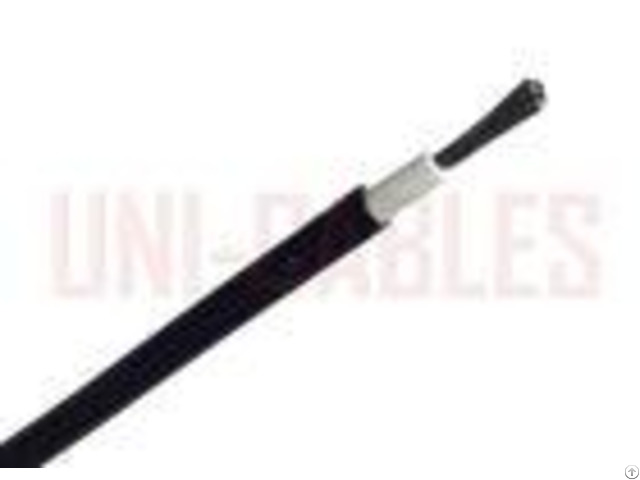

H1Z2Z2-K Solar Power Cable Acc.

to DIN EN 50618 For Photovoltaic System APPLICATION Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays.

Suitable for fixed installations, internal and external, within conduit or systems.

Our solar cable is ozone-resistant according to BS EN 50396, UV resistant according to HD 605/A1, and is tested for durability according to EN 60216 - For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.

These 1.5kV D.C. cross-linkedcables offer exceptional performances, easy installation and long-term reliability for solar plant.

They link photovoltaic panels for Utility-Scale solar plants or rooftops, and also connect them to the array box (if existing), or potentially to the inverter.

CABLE STANDARDS EN 50618: 2014, TV 2 PfG 1169/08.2007, - - - - Direct burial | yes | TUEV | yes | CPR-performance | Eca | Conductor material | tinned copper | Conductor class | class 5 = fine stranded | Insulation | cross-linked polyolefin-copolymer | Sheathing material | cross-linked polyolefin-copolymer | Flame-retardant | VDE 0482-332-1-2/IEC 60332-1-2 | Smoke density | DIN EN 61034/IEC 61034 | Halogen-free | DIN EN 50267/IEC 60754 | UV-resistant | yes | Oil-resistant | EN 60811-2-1 | Ozone-resistant | yes | For outdoor use | yes | Maximum permitted conductor temperature | 120 C | Permitted outer cable temperature, fixed | -40 - +90 C | Permitted outer cable temperature, in motion/during installation | -25 - +60 C | Bending radius, fixed installation | 4 x DA | Bending radius, moving application | 6 x DA | - - - - DIMENSIONS - - - - UNI-CABLES PART NO.

| NO.

OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT | TENSILE STRENGTH IN OPERATION | | | mm | mm | kg/km | N | UNIPV10025 | 1 | 2.5 | 4.9 | 40 | 37 | UNIPV10040 | 1 | 4 | 5.4 | 56 | 60 | UNIPV10060 | 1 | 6 | 5.9 | 73 | 90 | UNIPV10100 | 1 | 10 | 6.9 | 115 | 150 | UNIPV10160 | 1 | 16 | 8.0 | 170 | 240 | UNIPV10250 | 1 | 25 | 10.3 | 270 | 375 | UNIPV10350 | 1 | 35 | 11.8 | 365 | 525 | UNIPV10500 | 1 | 50 | 13.5 | 508 | 750 | UNIPV10700 | 1 | 70 | 16.0 | 729 | 1050 | UNIPV10950 | 1 | 95 | 17.8 | 923 | 1350 | UNIPV11200 | 1 | 120 | 19.8 | 1178 | 1800 | UNIPV11500 | 1 | 150 | 21.1 | 1460 | 2250 | UNIPV11850 | 1 | 185 | 24.4 | 1777 | 2775 | UNIPV12400 | 1 | 240 | 27.1 | 2252 | 3600 | - - - - CONDUCTORS Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables - - - - NOMINAL CROSS SECTIONAL AREA | MAXIMUM RESISTANCE OF CONDUCTOR AT 20C | mm | Metal-Coated Wires ohms/km | 2.5 | 8.21 | 4 | 5.09 | 6 | 3.39 | 10 | 1.95 | 16 | 1.24 | 25 | 0.795 | 35 | 0.565 | 50 | 0.393 | 70 | 0.277 | 95 | 0.21 | 120 | 0.164 | 150 | 0.132 | 185 | 0.108 | 240 | 0.0817 | - - - - ELECTRICAL CHARACTERISTICS - - - - NO.

OF CORES | NOMINAL CROSS SECTIONAL AREA | CURRENT CARRYING CAPACITY In Air | | mm | Amps | 1 | 2.5 | 41 | 1 | 4 | 55 | 1 | 6 | 70 | 1 | 10 | 98 | 1 | 16 | 132 | 1 | 25 | 176 | 1 | 35 | 218 | 1 | 50 | 276 | 1 | 70 | 347 | 1 | 95 | 416 | 1 | 120 | 488 | 1 | 150 | 566 | 1 | 185 | 644 | 1 | 240 | 775 | - - - - Based on a 60C ambient temperature DE-RATING FACTORS - - - - AIR TEMPERATURE | UP TO 60C | 70C | 80C | 90C | 100C | 110C | DE-RATING FACTOR | 1.00 | 0.91 | 0.82 | 0.71 | 0.58 | 0.41 | - - - -
