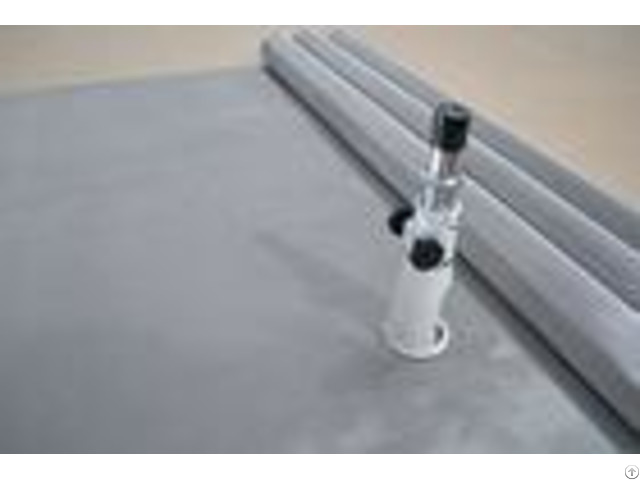

High Precision Low Enlongation Stainless Steel Screen Printing Mesh - China

High Precision Low Enlongation Stainless Steel Screen Printing Mesh SS printing mesh is widely used in curver surface subject, like the Printed Circuit Board, Glass, Creamic, Metal, Rubber, Plastic and so on.

it is very suitable for use harsh environments, multicolor overprint, Batch printing ect.

Introduce For The Stainless Steel Screen Printing Mesh: Material: SUS 304N, 304HP, 316 - Mesh count: 40mesh/inch-400mesh /inch Wire diameter: 18micron-160 micron Roll width: 40"(1020mm), 48"(1220mm), 60"(1530mm), standard size, other widewe can customized for you.

Roll Length: Staindard size 30meters.

Weave style: Plain weave.

1: 1 Mesh thickness: please see our specification.

Features For Stainless Steel Screen Printing Mesh: Low Elongatation; High tension; Heat resistant; High stability; High flexibility Non-electrostatic Abrasion resistant; Good Solvent resistant; Chemical & Thremal resistant; Excellent resistant to abrasion; Excellent levels of plasticity; and so on.

Application For Stainless Steel Screen Printing Mesh: Reking Stainless steel screen printing mesh are mainly used in creamic printing industy, glass printing industry, touch screen printing, the solar battery printing, LCD printing, FPD printing, electronic components printing, thick film printing ect.

Specification For Stainless Steel Screen Printing Mesh: - - - - Mesh/ inch | Wire diameter (m) | opening (%) | Aperture (m) | Mesh thickness (m) | One time calender (m) | Two time calender (m) | Suggestion tension (N/CM) | Ink thickness (cm3/) | 40 | 160 | 56 | 475 | 300--320 | / | / | / | 179.1 | 50 | 140 | 52 | 368 | 265--280 | / | / | / | 146.9 | 60 | 120 | 51 | 303 | 230--245 | / | / | / | 123.2 | 80 | 120 | 39 | 198 | 235--245 | / | / | / | 92.9 | 80 | 90 | 52 | 228 | 175--180 | / | / | / | 93.1 | 80 | 50 | 71 | 268 | 95--100 | / | / | / | 71.0 | 100 | 100 | 37 | 154 | 195--205 | / | / | / | 77.2 | 120 | 80 | 39 | 132 | 155--165 | / | / | / | 65.8 | 150 | 60 | 42 | 109 | 115--124 | / | / | / | 50.0 | 165 | 45 | 50 | 109 | 88--93 | / | / | / | 45.1 | 165 | 50 | 46 | 104 | 97--105 | / | / | / | 45.6 | 180 | 45 | 48 | 96 | 88--93 | / | / | / | 41.5 | 180 | 50 | 42 | 91 | 96-104 | / | / | / | 41.7 | 200 | 40 | 47 | 87 | 82--83 | 66-68 | 62-64 | 49-53 | 37.5 | 200 | 50 | 37 | 77 | 98--103 | 86-88 | 84-86 | 49-52 | 36.8 | 230 | 35 | 46 | 75 | 81--83 | 56-58 | 55-57 | 47-50 | 28.8 | 250 | 40 | 37 | 62 | 69--74 | 66-68 | 65-67 | 47-50 | 23.2 | 250 | 30 | 50 | 72 | 63--64 | 49-50 | 45-47 | 45-48 | 29.8 | 250 | 35 | 43 | 67 | 77--78 | 58-59 | 54-56 | 45-48 | 31.2 | 270 | 35 | 40 | 59 | 71--75 | 60-62 | 57-59 | 42-45 | 30.1 | 300 | 30 | 42 | 55 | 67--68 | 51-52 | 47-49 | 40-45 | 28.8 | 325 | 30 | 38 | 48 | 62--66 | 50-52 | 49-51 | 40-42 | 28.2 | 325 | 28 | 41 | 50 | 63--64 | 49-51 | 45-47 | 40-42 | 26.4 | 325 | 23 | 50 | 55 | 49--53 | 38-40 | 35-37 | 39-40 | 25.4 | 350 | 25 | 43 | 48 | 46--49 | 42-43 | 39-41 | 38-40 | 18.7 | 400 | 18-19 | 51.3 | 46 | 536-40 | 27-28 | 25-27 | 38-40 | 20.0 | 400 | 23 | 41 | 41 | 50--54 | 39-40 | 35-37 | 37-40 | 22.0 | - - - - Photos for the Stainless Steel Screen Printing Mesh: The warehouse of the stainless steel steel screen printing mesh Certification for the Stainless Steel Screen Printing Mesh:
