Lihh Iec 60754 Lszh Grey Electronic Cables Pe Frnc Armoured Control Cable - China

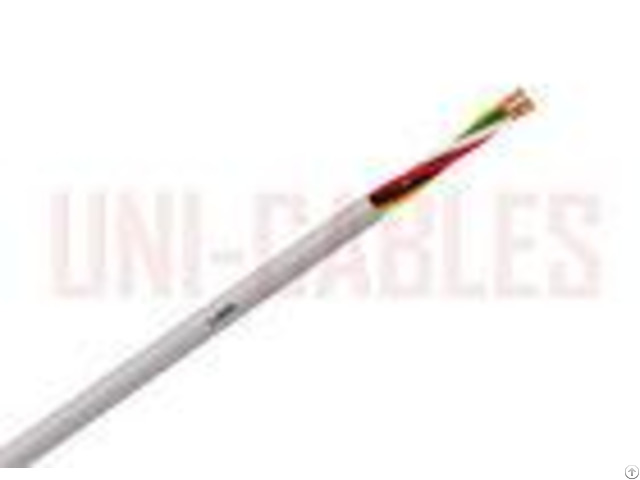

IEC 60754 Standard Control Cable Type LiHH LSZH CU/PE/PVC flexible wire APPLICATION LSZH (Low Smoke Zero Halogen) electronic cables are usedfor connection and signal transfer in measuring and controlequipment.

For indoor installation in dry and wet rooms, forinstallation under plaster.

DIMENSIONS - - - - UNI-CABLES PART NO.

| NO.

OF CORES | NOMINAL CROSS SECTIONAL AREA mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | UNI200014 | 2 | 0.14 | 3.3 | 13 | UNI200025 | 2 | 0.25 | 3.6 | 20 | UNI200034 | 2 | 0.34 | 4.3 | 26 | UNI200050 | 2 | 0.5 | 4.5 | 30 | UNI20075 | 2 | 0.75 | 5.2 | 40 | UNI2010 | 2 | 1 | 5.8 | 50 | UNI2015 | 2 | 1.5 | 7 | 59 | UNI300014 | 3 | 0.14 | 3.5 | 16 | UNI300025 | 3 | 0.25 | 3.8 | 23 | UNI300034 | 3 | 0.34 | 4.5 | 30 | UNI300050 | 3 | 0.5 | 4.8 | 36 | UNI30075 | 3 | 0.75 | 5.5 | 54 | UNI3010 | 3 | 1 | 6.1 | 57 | UNI3015 | 3 | 1.5 | 7.4 | 72 | UNI400014 | 4 | 0.14 | 3.7 | 18 | UNI400025 | 4 | 0.25 | 4.1 | 27 | UNI400034 | 4 | 0.34 | 4.8 | 38 | UNI400050 | 4 | 0.5 | 5.2 | 44 | UNI40075 | 4 | 0.75 | 6.1 | 60 | UNI4010 | 4 | 1 | 6.6 | 67 | UNI4015 | 4 | 1.5 | 8 | 87 | UNI500014 | 5 | 0.14 | 4.1 | 22 | UNI500025 | 5 | 0.25 | 4.5 | 32 | UNI500034 | 5 | 0.34 | 5.3 | 44 | UNI500050 | 5 | 0.5 | 6.1 | 57 | UNI50075 | 5 | 0.75 | 6.7 | 73 | UNI5010 | 5 | 1 | 7.5 | 82 | UNI600014 | 6 | 0.14 | 4.2 | 25 | UNI600025 | 6 | 0.25 | 4.9 | 39 | UNI700014 | 7 | 0.14 | 4.4 | 26 | UNI700025 | 7 | 0.25 | 5 | 41 | UNI700034 | 7 | 0.34 | 6.1 | 59 | UNI700050 | 7 | 0.5 | 6.4 | 71 | UNI70075 | 7 | 0.75 | 7.3 | 91 | UNI800014 | 8 | 0.14 | 4.8 | 30 | UNI800025 | 8 | 0.25 | 6.4 | 50 | UNI800034 | 8 | 0.34 | 6.2 | 65 | UNI10014 | 10 | 0.14 | 5.5 | 36 | UNI10025 | 10 | 0.25 | 6.3 | 58 | UNI10034 | 10 | 0.34 | 7.7 | 80 | UNI10050 | 10 | 0.5 | 8.3 | 101 | UNI10075 | 10 | 0.75 | 9.5 | 137 | UNI12014 | 12 | 0.14 | 6.1 | 44 | UNI12025 | 12 | 0.25 | 6.5 | 66 | UNI12034 | 12 | 0.34 | 7.9 | 94 | UNI12050 | 12 | 0.5 | 8.6 | 117 | UNI12075 | 12 | 0.75 | 10.2 | 166 | UNI15014 | 15 | 0.14 | 6.5 | 57 | UNI15025 | 15 | 0.25 | 7.3 | 80 | UNI15034 | 15 | 0.34 | 8.8 | 115 | UNI15050 | 15 | 0.5 | 9.5 | 145 | UNI16025 | 16 | 0.25 | 7.4 | 85 | UNI18014 | 18 | 0.14 | 6.9 | 65 | UNI18025 | 18 | 0.25 | 7.9 | 95 | UNI18034 | 18 | 0.34 | 9.6 | 135 | UNI18050 | 18 | 0.5 | 10.5 | 171 | UNI20014 | 20 | 0.14 | 7.8 | 73 | UNI21014 | 21 | 0.14 | 7.9 | 76 | UNI21025 | 21 | 0.25 | 8.6 | 105 | UNI21034 | 21 | 0.34 | 10.4 | 154 | UNI21050 | 21 | 0.5 | 11.3 | 197 | UNI25014 | 25 | 0.14 | 8.3 | 90 | UNI25025 | 25 | 0.25 | 9.2 | 130 | UNI25034 | 25 | 0.34 | 11.4 | 180 | UNI25050 | 25 | 0.5 | 12.4 | 230 | UNI30014 | 30 | 0.14 | 8.8 | 98 | UNI30050 | 30 | 0.5 | 13.1 | 269 | UNI34014 | 34 | 0.14 | 9.2 | 111 | UNI34025 | 34 | 0.25 | 10.8 | 168 | UNI34034 | 34 | 0.34 | 12.8 | 233 | UNI34050 | 34 | 0.5 | 13.8 | 301 | UNI40014 | 40 | 0.14 | 10.4 | 139 | UNI40025 | 40 | 0.25 | 11.4 | 196 | UNI40034 | 40 | 0.34 | 13.7 | 272 | UNI40050 | 40 | 0.5 | 15.2 | 365 | UNI50014 | 50 | 0.14 | 12.5 | 764 | - - - - Core Identification The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

All the information is provided in good faith and is believed to be correct at the time of publication.

When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.
