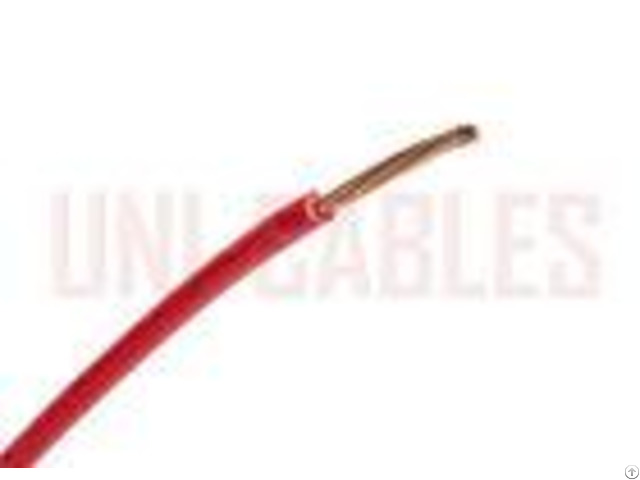

Polyvinyl Chloride Red Black Pvc Electrical Cable 2491x For Grounding And Control - China
price: check with company for price
BS EN 50525-2-31 PVC Electrical Cable Type 2491X for Grounding and Control Application PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
CONSTRUCTION Conductor Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360) Insulation PVC (Polyvinyl Chloride) Type TI1 according to BS EN 50363 CABLE STANDARDS BS EN 50525-2-31 (previously BS 6004, Cenelec HD21.3), BS EN/IEC 60332-1-2 National NF C 32-201/3 CHARACTERISTICS Voltage Rating (Uo/U) H05V-K: 300/500V H07V-K: 450/750V Temperature Rating Fixed: -30C to +70C Flexed: -5C to +70C Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 12 x overall diameter Sheath Colour Red Black Blue Orange Yellow White Green/Yellow Grey Brown Violet Pink Dimensions H05V-K - - - - Unique PART NO.
| NOMINAL CROSS SECTIONAL AREA mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | UNRV0.5 | 0.5 | 2.2 | 9 | UNRV0.75 | 0.8 | 2.4 | 11 | UNRV1.0 | 1.0 | 2.5 | 14 | - - - - H07V-K - - - - Unique PART NO.
| NOMINAL CROSS SECTIONAL AREA mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | UNRV1.5 | 1.5 | 2.9 | 20 | UNRV2.5 | 2.5 | 3.6 | 31 | UNRV4 | 4 | 4.1 | 46 | UNRV6 | 6 | 4.7 | 75 | UNRV10 | 10 | 6.1 | 125 | UNRV16 | 16 | 7.3 | 199 | UNRV25 | 25 | 9 | 299 | UNRV35 | 35 | 10.2 | 421 | UNRV50 | 50 | 12.1 | 539 | UNRV70 | 70 | 13.8 | 730 | UNRV95 | 95 | 16.3 | 973 | - - - - Color Code - - - - COLOUR | Black | Blue | Grey | Green/ Yellow | Orange | Red | Pink | Yellow | Violet | Brown | White | CODE | BK | BL | GR | GY | OR | RD | PK | YW | VI | BR | WH | - - - - CONDUCTORS Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables - - - - NOMINAL CROSS SECTIONAL AREA | MAXIMUM DIAMETER OF WIRES IN CONDUCTOR | MAXIMUM RESISTANCE OF CONDUCTOR AT 20C | Plain Wires | Metal-Coated Wires | mm | mm | ohms/km | ohms/km | 0.5 | 0.21 | 39 | 40.1 | 0.75 | 0.21 | 26 | 26.7 | 1 | 0.21 | 19.5 | 20 | 1.5 | 0.26 | 13.3 | 13.7 | 2.5 | 0.26 | 7.98 | 8.21 | 4 | 0.31 | 4.95 | 5.09 | 6 | 0.31 | 3.3 | 3.39 | 10 | 0.41 | 1.91 | 1.95 | 16 | 0.41 | 1.21 | 1.24 | 25 | 0.41 | 0.78 | 0.795 | 35 | 0.41 | 0.554 | 0.565 | 50 | 0.41 | 0.386 | 0.393 | 70 | 0.51 | 0.272 | 0.277 | 95 | 0.51 | 0.206 | 0.21 | - - - - ELECTRICAL CHARACTERISTICS Current Carrying Capacity - - - - NOMINAL CROSS SECTIONAL AREA | IN A THERMAL INSULATED WALL | ON A WALL | IN FREE AIR | mm | 2 Core Amps | 3 Core Amps | 2 Core Amps | 3 Core Amps | 1 Core Amps | 0.5 | - | - | - | - | - | 0.75 | - | - | - | - | 15 | 1 | - | - | - | - | 19 | 1.5 | 14.5 | 13.5 | 17.5 | 15.5 | 24 | 2.5 | 19.5 | 18 | 24 | 21 | 32 | 4 | 26 | 24 | 32 | 28 | 42 | 6 | 34 | 31 | 41 | 36 | 54 | 10 | 46 | 42 | 57 | 50 | 73 | 16 | 61 | 56 | 76 | 68 | 98 | 25 | 80 | 73 | 101 | 89 | 129 | 35 | 99 | 89 | 125 | 110 | 158 | 50 | 119 | 108 | 151 | 134 | 198 | 70 | 151 | 136 | 192 | 171 | 245 | 95 | 182 | 164 | 232 | 207 | 292 | - - - -
