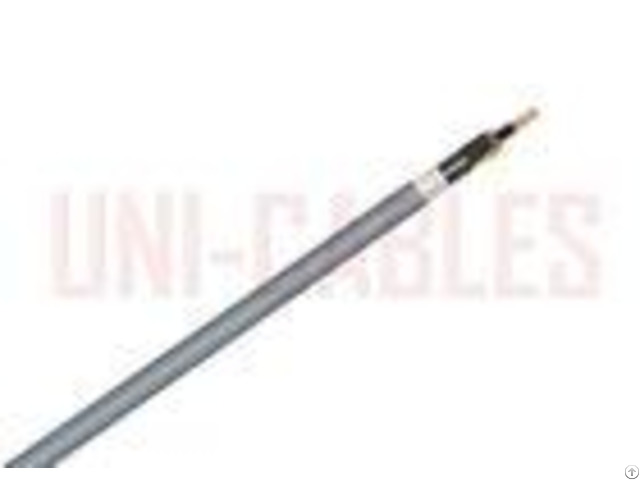

Tcwb Bs En 50525 2 51 Cy Pvc Electrical Control Cable Black With White Numbers - China

BS EN 50525-2-51 Standard Control Cable Type CY PVC Screened Wire APPLICATION Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units.

Suitable for fixed installations or for flexible use when temporarily moved, and in conditions of medium mechanical stress.

Can be used outdoors when protected against direct sunlight, and in dry or damp conditions indoors.

CY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671 - CABLE STANDARDS Generally to BS EN 50525-2-51, BS EN/IEC 60332-1 DIMENSIONS - - - - UNI-Cables PART NO.

| NO.

OF CORES | NOMINAL CROSS SECTIONAL AREA mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | UNI02005CY | 2 | 0.5 | 5.7 | 35 | UNI020075CY | 2 | 0.75 | 6.1 | 45 | UNI02010CY | 2 | 1 | 6.3 | 57 | UNI02015CY | 2 | 1.5 | 7.3 | 69 | UNI02025Y | 2 | 2.5 | 8.7 | 107 | UNI03005CY | 3 | 0.5 | 6 | 48 | UNI030075CY | 3 | 0.75 | 6.4 | 63 | UNI03010CY | 3 | 1 | 6.6 | 72 | UNI03015CY | 3 | 1.5 | 7.7 | 95 | UNI03025CY | 3 | 2.5 | 9.2 | 140 | UNI04005CY | 4 | 0.5 | 6.4 | 62 | UNI040075CY | 4 | 0.75 | 6.9 | 76 | UNI04010CY | 4 | 1 | 7.1 | 89 | UNI04015CY | 4 | 1.5 | 8.4 | 118 | UNI04025CY | 4 | 2.5 | 10 | 172 | UNI04040CY | 4 | 4.0 | 14.4 | 304 | UNI05005CY | 5 | 0.5 | 6.9 | 73 | UNI050075CY | 5 | 0.75 | 7.5 | 89 | UNI05010CY | 5 | 1 | 7.7 | 107 | UNI05015CY | 5 | 1.5 | 9.1 | 141 | UNI05025CY | 5 | 2.5 | 10.9 | 216 | UNI07005CY | 7 | 0.5 | 7.5 | 89 | UNI070075CY | 7 | 0.75 | 8.1 | 113 | UNI07010CY | 7 | 1 | 8.4 | 139 | UNI07015CY | 7 | 1.5 | 9.9 | 181 | UNI07025CY | 7 | 2.5 | 11.9 | 283 | UNI12005CY | 12 | 0.5 | 9.6 | 141 | UNI120075CY | 12 | 0.75 | 10.4 | 181 | UNI12010CY | 12 | 1 | 10.8 | 230 | UNI12015CY | 12 | 1.5 | 12.9 | 307 | UNI180075CY | 18 | 0.75 | 12.1 | 274 | UNI18010CY | 18 | 1 | 12.6 | 331 | - - - - CONDUCTORS Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables - - - - NOMINAL CROSS SECTIONAL AREA | MAXIMUM RESISTANCE OF CONDUCTOR AT 200C | mm | Plain Wires ohms/km | 0.5 | 39 | 0.75 | 26 | 1 | 19.5 | 1.5 | 13.3 | 2.5 | 7.98 | - - - - ELECTRICAL CHARACTERISTICS Current Carrying Capacity at 30C - - - - NOMINAL CROSS SECTIONAL AREA mm | CURRENT RATING Amps | 0.5 | 9 | 0.75 | 12 | 1 | 15 | 1.5 | 18 | 2.5 | 26 | - - - - DE-RATING FACTORS - - - - NO.

OF CORES | 5 | 7 | 10 | 14 | 19 | 24 | 44 | 48 | DE-RATING FACTOR | 0.72 | 0.63 | 0.56 | 0.51 | 0.45 | 0.42 | 0.34 | 0.33 | - - - -
