Vde0282 2core 0 6mm Copper Conductor Cable H05rr F Rubber Flexible Cable - China

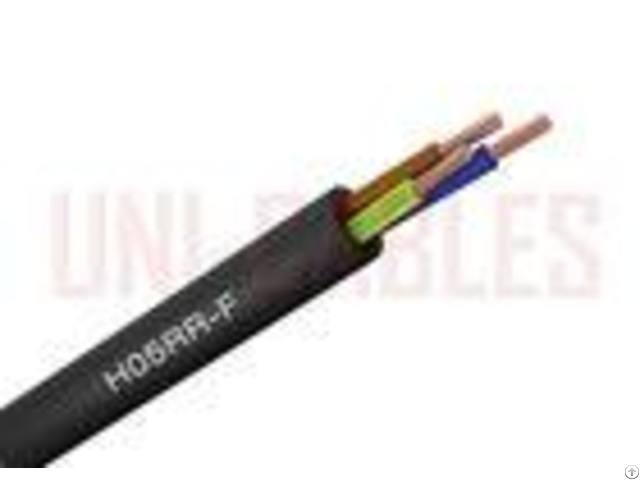

H05RR-F / 318-TRS Rubber Flexible Cable According to VDE0282 / BS 6500 APPLICATION Ordinary duty flexible rubber cords suitable for use in domestic premises, such as kitchens and officesfor supplying portable appliance.

Conductors: Annealed flexible copper Insulation: EPR (Ethylene propylene rubber) or VIR (Vulcanised insulated rubber) more commonly known as VRI Core identification: 2 core: Blue & brown 3 core: Blue, brown & green/yellow 4 core: Black, brown, grey & green/yellow 5 core: Black, blue, brown, grey & green/yellow Sheath/Jacket: TRS (Tough rubber sheath) Colour: Black Voltage: 300/500v Operating temperature: Maximum 70C, minimum bending -30C Minimum bending radius: 6 x overall diameter Standards: BS6500: flexible electric cables for use with appliances and equipment intended for domestic, office and similar environments BS7919: flexible electric cables for use with appliances and equipment intended for industrial and similar environments DIMENSIONS - - - - UNI-CABLES PART NO.

| NO.

OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT | | | mm | mm | mm | kg/km | UNI318TRS020075 | 2 | 0.75 | 0.6 | 6.1 | 53 | UNI318TRS02010 | 2 | 1 | 0.6 | 6.6 | 64 | UNI318TRS02015 | 2 | 1.5 | 0.8 | 7.8 | 95 | UNI318TRS02025 | 2 | 2.5 | 0.9 | 9.2 | 140 | UNI318TRS02040 | 2 | 4 | 1 | 10.8 | 180 | UNI318TRS030075 | 3 | 0.75 | 0.6 | 6.6 | 65 | UNI318TRS03010 | 3 | 1 | 0.6 | 7 | 77 | UNI318TRS03015 | 3 | 1.5 | 0.8 | 8.4 | 115 | UNI318TRS03025 | 3 | 2.5 | 0.9 | 9.9 | 170 | UNI318TRS03040 | 3 | 4 | 1 | 11.7 | 240 | UNI318TRS03060 | 3 | 6 | 1 | 13.3 | 320 | UNI318TRS040075 | 4 | 0.75 | 0.6 | 7.3 | 80 | UNI318TRS04010 | 4 | 1 | 0.6 | 7.6 | 95 | UNI318TRS04015 | 4 | 1.5 | 0.8 | 9.4 | 145 | UNI318TRS04025 | 4 | 2.5 | 0.9 | 11.1 | 210 | UNI318TRS04040 | 4 | 4 | 1 | 13.0 | 300 | UNI318TRS04060 | 4 | 6 | 1 | 14.5 | 405 | UNI318TRS050075 | 5 | 0.75 | 0.6 | 8.1 | 100 | UNI318TRS05010 | 5 | 1 | 0.6 | 8.4 | 115 | UNI318TRS05015 | 5 | 1.5 | 0.8 | 10.3 | 170 | UNI318TRS05025 | 5 | 2.5 | 0.9 | 12.4 | 255 | UNI318TRS05040 | 5 | 4 | 1 | 14.5 | 355 | - - - - Colour Codes - - - - COLOUR | Black | White | CODE | BK | WH | - - - - CONDUCTORS Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables - - - - NOMINAL CROSS SECTIONAL AREA mm | MAXIMUM DIAMETER OF WIRES IN CONDUCTOR mm | MAXIMUM RESISTANCE OF CONDUCTOR AT 20C | Plain Wires ohms/km | 0.75 | 0.21 | 26 | 1 | 19.5 | 1.5 | 0.26 | 13.3 | 2.5 | 7.98 | 4 | 0.31 | 4.95 | 6 | 3.3 | - - - -
