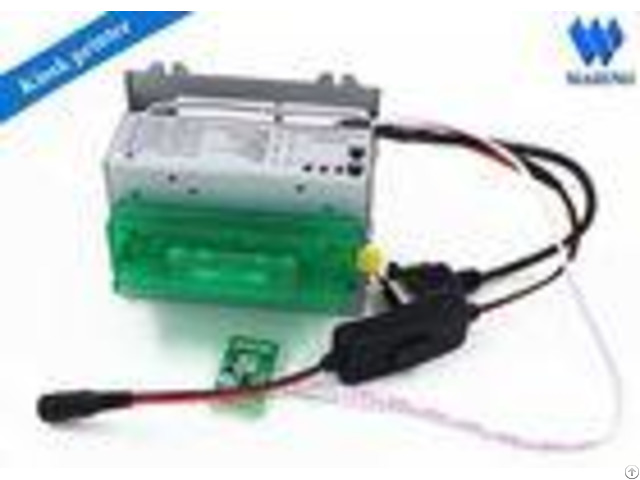

24v 3 Inch Cdm Kiosk 80mm Thermal Label Printer Windows 8 System Rs 232 Interface - China

24V 3 Inch CDM / Kiosk 80mm Thermal Label Printer Module, Windows 8 System / RS-232 Interface QuickDetail: BrandprintermechanismCAPD 347 Ultrahighspeedmax200mm/s Full/partialcuttingmode(b yadjustable) Windows/Android/Linuxsyst emsupport Paperjampreventionsupport Draggingticketpreventions upport BezelLEDindication Description: MS-D3473 inchthermalkioskprinterwh ichisarmedwithnewestdesig nspaperjampreventionand draggingticketprevention, itcanoffermoreconvenience forusermaintenance.

Specification: - - - - mechanism: | CAPD347 | Printing method | Thermal dot line printing | Dots/line | 576 dots/line | Dot pitch | 8 dot/mm | Paper width | 80 mm | Printing width | 72 mm | Paper thickness | 54~78 um | Printing speed | 170 mm/s | Paper feed direction | 180 horizontal | Sensors | Head temperature | Thermistor | Paper press shaft | Mechanical switch | Paper end | Photo interrupter | Paper loading | Easy loading | Font size | ASCII: 9*17;12*24; Chinese: 24*24 | Power supply | Logic circuit | 4.75~5.25 V | Motor | 21.6~26.4 V | Dimension (L*W*H) | 119.45*96.13*80.60mm | Weight | Approx 1.92 kg | Reliability | Circuit: over 1, 000, 000, 000 pulses Cutter: over 7, 000, 000 cuts Thermal head: over 100 km MCBF: 37, 000, 000 lines | Ambient environment | Work temperature | -10 ~50 | Work humidity | 20~85% RH | Storage temperature | -25~70 | Storage temperature | 10~90% RH | - - - - - - - - Controlling board: | | Interface | RS-232 /USB/Parallel | power supply | DC 24V/2.5A | Command set | ESC/POS | Barcode | supported | Firmware location | 512KB Flash memory | Buffer | 32 KB | SRAM | 64KB (extra) | Driver | Parallel/USB driver | System | WindowsXP/Win7(32bits or 64 bits)/ Win8/Android/Linux OS | Accessories: | Sensors | paper near end sensor; | paper jam sensor; | dragging paper sensor; | Paper holding unit | Paper guide mouth | Interface connector | Power supply unit | Cable | - - - - Application: Self-service terminal; ATM; CDM; parking system; payment kiosk; coupon machine; automatic call distributor; ticket vendor; inquiry machine; multimedia kiosk, and more
