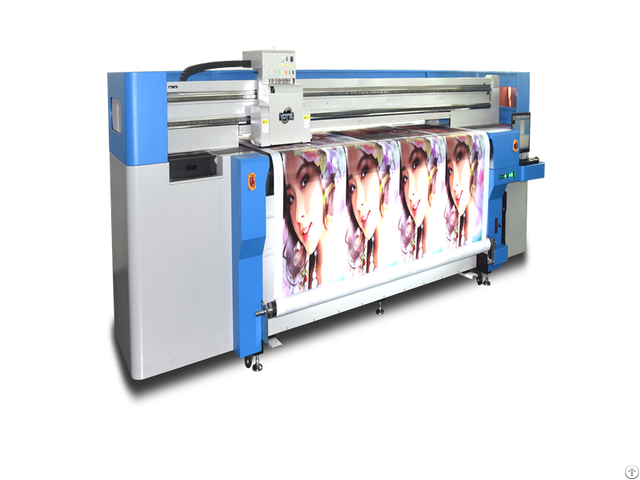

Advertisement Printing Machine Uv Hybrid Printer Yd2600 Rc - China

Product Description

YD2600-RC Hybrid UV Printer adopts imported original grey level Ricoh G5 internal heating industrial printhead, the number of printhead can be increased or decreased according to your requirements, the print speed can up to 36㎡/h (4 PASS), can meet the demands of large quantities production capacity.

YD2600-RC is a high-speed and high - precision UV printer for medium and small size processing enterprises and can meet their high precision and high speed production requirements.

Product advantages

The advantage of accessories

1 - YD2600-RC Adopts new 3-8 pcs grey level Ricoh G5 internal heating industrial printhead, 4-7 colors optional(6 colors or 6+2 double white), the minimum ink droplet is 7pl and maximum is 35pl, multicolor printing, it can clearly print 2pt typeface, not only print with high resolution, but also high speed.

G5 print head life time is long, what is more, work performace is stable, so it is very suitable for long-time working, 24 hours runing.

If maintain in good condition, the life time of print head can reach about 5 years

2 - Adopting dual-level precision screw and imported Panasonic servo synchronous motors, work stably, ensure Y axis double side screws synchronous runing, small error, stable and reliable, which is guarantee of high-speed and stable printing.

3 - Whole steel frame structure tempering treatment, which adopt dual guide rail steel frame structure, print head can be more steady, running can be more stable and faster.

4 - Taiwan HIWIN mute double guid rail, high resolution, low noise, durable, ensuring the car work steadily, decreasing shake, spraying ink will be more stable and reduce deviation.

5 - Equippment equipped with several emergency brake switches can ensure body and equippment safety.



6 - Equipped with emergency back up power supply, when the computer powers off of suddenly, can still maintain the negative pressure system, keep the negative pressure system working properly and enter into the working state quickly when power on.

Humanized design Advantage

1 - Automatic measurement system: can automatically measure with senses distance nozzle and media, which eliminate the procedure that we measure thickness by ourselves, avoiding damage caused by human error, efficient and accurate.

2 - Unique saving feeding system, oversize and overweight print samples can be easily moved from adsorption platform, save time and labor.



3 - Automatic media positioning device makes the material position more accurate, repeat printing without deciation and it’s convenient to place the materials.



4 - The vacuum adsorption platform can be changed from suction to blowing.

It forms a dielectric layer between media and platform, so to ensure heavy large finished product can be moved easily.

Maximum load-bearing is 50 kg/ ㎡.

5 - Car anti-collision device, carriage automatically stops when colliding with obstacles.

It prevents carriage and print head form damages.

More useful features

1 - YD2600-RC hybrid UV printer equipped with automatic cover white, white, spot color and other 16 kinds of white ink printing mode and can print special effect with varnish.

2 - YD2600-RC UV hybrid printer equipped with automatically white jump printing function for increased productivity effectively, and it can also automatically recognize and avoid a blank part of the picture.

3 - YD2600-RC can be set the irradiation power of two UV modulator tubes, During the bi-directional printing, it can automatically rotate according to the round-trip, and can effectively reduce the depth PASS Road.

4 - The powerful nozzle compensation function of hybrid printer can use the normal nozzle replaces the missing nozzle for ink jet printing, ensuring that the picture does not appear leaky white or PASS Road.

5 - YD2600-RC Hybrid printer equipped with a powerful, intelligent, user-friendly RIP software, different images can be still output when superimposed, which greatly facilitates the daily color proofing work and improves printing efficiency.

6 - The optional software template technology can solve the error problem in splice, make the splice error is less than 0.5mm.

7 - Optional production line printing mode can fit the industrialized production line.

Company Contact:

• Posted By: Shnezhen Yueda Printing Technology Co.,Ltd

• Phone: +8613925228597

• Address: Gangbei Industrial Park, Baohe Road, Longgang District , Shenzhen , Guangdong , China

• Email:

• Website: https://www.yottaprinter.com

• Business Description: The R&D center and production base of Yueda International (HK) Industrial Co., Ltd. is located in Longgang District, Shenzhen City, China.

  Occupying an area of 1, 6000 sq.

  m, it is a high-tech enterprise with superior R&D methodologies, production, sales and services of flatbed inkjet printers.

  It possesses world's leading technology and brings high-tech talented people together-a team composed of intelligent, innovative and experienced personnel for over 200 people.

  As an innovated high-tech enterprise, Yueda Printing has a management and R&D team with vitality, high quality and specialization.

  First-class technical teams are well-prepared for offering comprehensive services in five cities in China: Shenzhen, Beijing, Shanghai, XiAn and JiNan.

  Since its establishment, Yueda Printing Technology has always adhered to the idea of delivering unrivaled machines and warmest service, which makes it more prevailing.

  With rich experiences, it continuously supports the whole flatbed inkjet printer industry.

  With scientific management, every personnel play his best role.

  Yueda Printing has gained honors like 3A Quality, Civilized Enterprise etc.

  and acquired many certificates such as CE, RoHS and many other patents.

  Yueda Printing endeavors to become a leading and trustworthy enterprise and try to promote a fair, justice and harmonious atmosphere in flatbed inkjet printer industry.

  In the future, Yueda Printing will keep improving and delivering world-class products as well as services!
