New Advertising Billboard Printing Machines - China

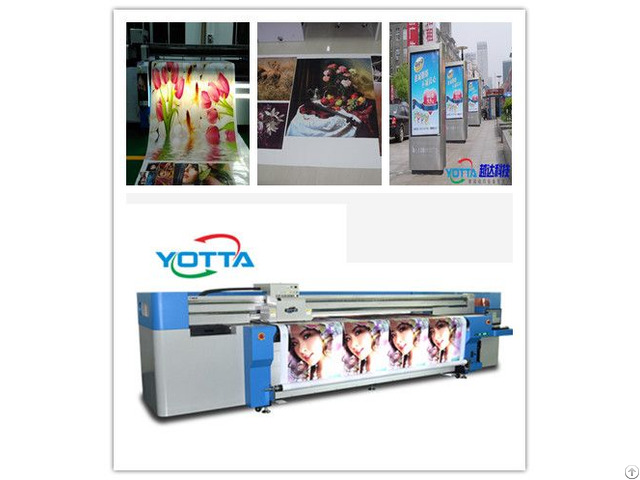

YD3200-RC Hybrid UV printer

YD3200-RC Hybrid Printer adopts imported original grey level Ricoh G5 internal heating industrial printhead, the number of printhead can be increased or decreased according to your requirements, the print speed can up to 38㎡/h (4 PASS), Can meet the demands of large quantities production capacity, Specially design a high-speed and high - precision UV printer for medium and small size processing enterprises and can meet their high precision and high speed production requirements.

1 - Adopting Ricoh Gen5 print head

Ricoh Gen5 print head has higher print speed and performance with its internal heating function compared to other types of printheads.

It is durable and suitable for all kinds of ink.

Its variable drop printing(7pl-35pl) delivers more delicate and higher resolution print results.

2 - Printing on roll and rigid media

This printing machine has two printing function: rolling printing and flat bed printing.

In addition to printing roll-to-roll, you can also print rigid materials with the maximum size of 3200mm as normal flatbed printer do.

3 - Anti-collision function

The cartridge stop working automatically when it collides with medias, protect the cartridge and printheads from damage.

4 - UV LED lamps for UV curing

YOTTA UV printers employ UV LED lamps for UV curing, which is power-saving and efficient.

No heat produced, it has a huge advantages on printing thermal sensitive substrate.

Besides, UV LED lamps is long-life and zero-pollution.

5 - 4-7 color printing

YD3200-RC hybrid printer allows 4-7 color printing, including CMYK, Lc, Lm and white ink, with which can produce special image effects such as relief and 3D, to get your unique prints.

6 - Automatic materials thickness measurement

Automatically measure the thickness of substrates, precise, time-saving and labor saving.

7 - Negative pressure system for ink supply

YOTTA printers use negative pressure system to make ink supply smoother and get more vivid images.

With pressure display, the pressure is easy to be seen and adjusted.

8 - ECO-friendly

No VOC UV curable ink and no pollution UV LED lamps are used.

Printer model YD3200-RC

Print head Ricoh-Gen5

Number of nozzles 3-8 pcs

Power 8.5 KW (38A)

Print width 3.2 m

Print materials Rigid materials and Flexiable materials

Print thickness Max 50 mm

Suitable mediums Rigid materials: glass, acrylic, leather, wood, metal sheet, PVC board, Corrugated board, reflective film, corrugated board

Flexible materials : ( wallpaper, advertising cloth, car sticker, etc.

)

Printing speed

4pass Single row 38 ㎡/h；double row 76㎡/h

6pass Single row 29 ㎡/h；double row 58㎡/h

8pass Single row 22 ㎡/h；double row 44㎡/h

Ink color C, M, Y, K, Lc, Lm (optional)

Ink type Environmental UV curing ink(No VOC)

Special ink UV white ink

Input format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI

Printer weight 1550KG

Printer Dimension 5.8m[L] × 1.7m[W] × 1.6m [H]

Environment requirement Independent, clean, low dust, low light, well-ventilated workplace environment temperature: 18℃~ 30℃ (64℉~ 86℉) Relative Humidity: 30% to 70% (non-condensing) Ventilation: Recommended use overhead exhaust fan, exhaust the amount of 600 cfm

Company Contact:

• Posted By: Shenzhen Yueda Printing Technology Co.,Ltd.

• Phone: 13925227012

• Address: Gangbei Industrial Park,Baohe Road,Longgang District,Shenzhen, shenzhen , China

• Email:

• Website: http://www.yo-da.com

• Business Description: We specialize in manufacturing UV different types and sizes of flatbed printers.

  Our printers can print any pictures on any flat materials with embossment and 3d effect.

  They are widely used in advertising, decoration and other industries.
