Sport Betting And Video Lottery 80mm Ticket Kiosk Thermal Printer - China

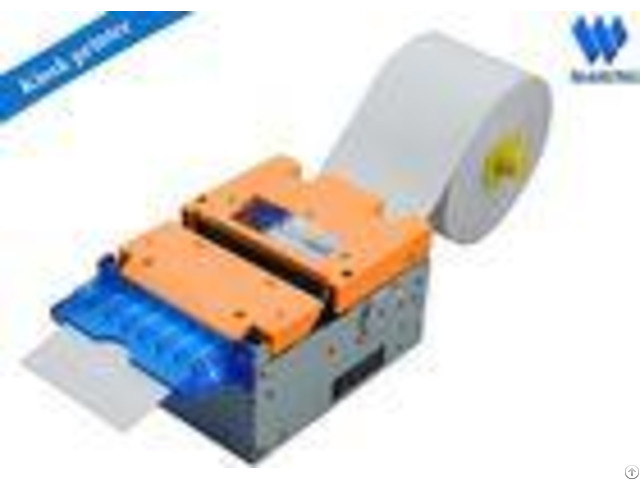

EP802-TMP Sport betting & video lottery ticket printer Features: Brand name thermal head & auto cutter Ultra Highly printing speed Max 250 mm/s Variable length ticket presenter Ticket retracting capability Sturdy adjustable paper roll bracket (horizontal & vertical mounting) Wide range paper thickness: from 0.06 ~ 0.2 mm Specification: - - - - Module | EP802-TMP | Control board | EP802_3 | Thermal printer head | Brand name: ROHM | Auto cutter | Brand name: OYANE | Printing | Printing method | Thermal dot line | Dots | 640dots | Speed | 250mm/s (max) | Printing width | 80mm (max) | Paper width | 60/80/82.5 mm | Paper thickness | 0.06~0.2 mm | Paper loading | Easy loading ( horizontal 180) | Cutting method | Full | Print head life | 100KM | Printing format | inverse, underline, italic, bold | Cutter life | 60m paper | 1, 000, 000 cuts | 200m paper | 500, 000 cuts | | Baud rate | 9600, 19200, 38400, 115200 | Font | ASCII | 9*17, 12*24 | Chinese | 24*24dots | Detection | TPH temperature | Temperature sensor | Mechanism open detection | Micro switch | Paper presence detection | Mechanical sensor | Ticket out detection | Paper near end detection | Photo-interrupter | Black mark detection | Paper cutting detection | Paper retracting detection | Conditions | Power supply | DC2410% V | Load current | 1.5A continuous 61mA Standby 3.2 A Peak | Interfaces | RS232, USB | Paper | Paper type | Thermal paper roll | Recommended paper type | KANZAN KF50 KP460 MITSUBISHIPG5075 TL4000 | Environment | operating temperature | -10~60(no condensation) | operating humidity | 20%~80%RH(40, 85%RH) | Storage temperature | -20~70(no condensation) | Storage humidity | 10%~90%RH(50, 90%RH) | Dimension | Paper holder 45 upward ( 150mm paper roll) | L*W*H=328*122.3*163 mm | Paper holder horizontal (150 mm paper roll) | L*W*H=355*122.3*288 mm | Paper roll vertical (150 mm paper roll) | L*W*H=196*122.3*288 mm | Weight | Approx 1.49kg(without paper roll ) | - - - - Application: Sports betting terminal; video lottery machine; gaming kiosk, payment kiosks; ATM; parking system; ticket vendor, airport boarding check printer, ATB tags printer and more Thank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!

Company Contact:

• Posted By: Shenzhen Masung Technology Co. Ltd

• Phone: 86-755-28895103

• Address: West of 3rd Building , 3rd Floor , Li jincheng industrial park, MinZhi town, LongHua district, Shenz, Shenzhen , guangdong , China

• Email:

• Website: https://www.kiosk-thermalprinter.com

• Business Description: MASUNG is one hi-tech innovative enterprise engaged in receipt printers of design, production, marketing and service, our main products cover with kiosk printer, mobile printer, POS printer, wireless printer, panel printer and special type printer.
