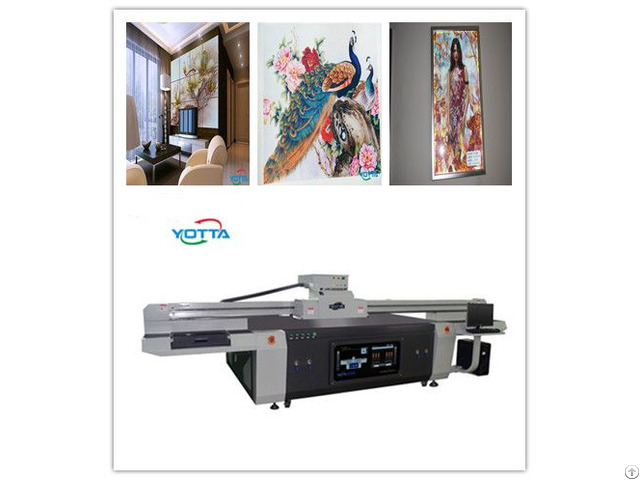

Yd2513 R5 Uv Flatbed Printer 3d Tv Wall Tile Background - China

With high printing performance, YD2513-R5 UV flatbed printer, which is designed for high-end products, can achieve high-quality on a wide range of materials.

Adopting internal heating industrial Ricoh Gen5 print head, the printer delivers brilliant colors and high print resolution in 600*2400dpi.

With high print speed of 36M²/h (4PASS), YD2513-R5 can meet your high-precision and production efficiency requirements.

This printing machine is upgraded on function design.

It applies drawer type ink barrel unit, which greatly facilitates the ink exchange and ink system maintenance.

Plus a variety of easy-to-use features, greatly improve productivity.

What’s more, it’s working performance is stable, idea for long-time working, 24 hours running.

Suitable materials

Rigid materials: Glass, Ceramic, Metal plate, Wood, Acrylic panel, KT board, PVC sheet, Melamine sheet, Marble board, etc.

Flexible materials: Paper, Plastics film, Leather, Textile, etc.

Model YD2513-R5

Print size 2500*1300m m

Print head Ricoh-Gen5 grey scale degree piezo print head

Print resolution 600à —2400 dpi

Print speed 4 Pass, 38 M²/h;   6 Pass, 29 M²/h;   8 Pass, 22 M²/h;

Print mode unidirecti onal and bidirectional

Ink color LM,LC,Y,M,C ,K (Optional)

Special ink UV white  ink or UV varnish


Ink type Environmenta l UV curing ink (NO  VOC)

Number of head 3-8  pcs

Materials thickness 1 00mm max.

Materials type Rigid  and flexible materials

Software PhotoPrint,  Seeget

Input format Adobe P ostscript Level 3, PDF , JPEG, TIFF, EPS, AI

Power requirement 220 V/AC(±10%), 50/60HZ; 6KW

Printer weight 1600KG

Printer size 4446*211 5*1355（mm）

Working environment

Separate , little sunlight, ventilated workshop.

Temperature: 18℃~30℃ (64℉~86℉)

Humidity:  30%~70% (Non-condensing)

Ventilation equipment : Suggest Overhead exhaust fan, displacement 600 cfm

Company Contact:

• Posted By: Shenzhen Yueda Printing Technology Co.,Ltd.

• Phone: 13925227012

• Address: Gangbei Industrial Park,Baohe Road,Longgang District,Shenzhen, shenzhen , China

• Email:

• Website: http://www.yo-da.com

• Business Description: We specialize in manufacturing UV different types and sizes of flatbed printers.

  Our printers can print any pictures on any flat materials with embossment and 3d effect.

  They are widely used in advertising, decoration and other industries.
