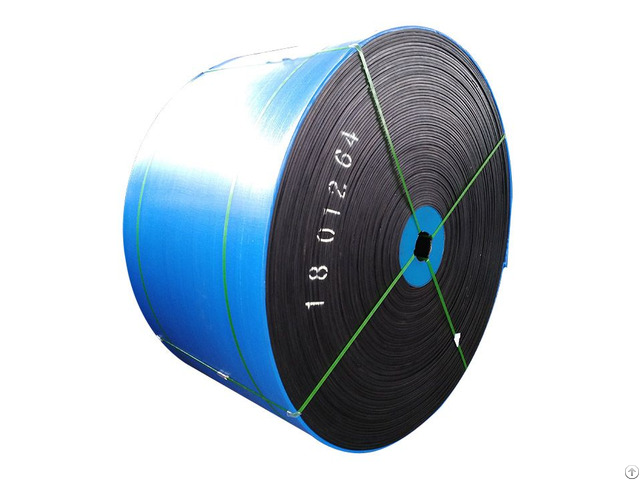

Heat Resistant Steel Cord Conveyor Belt - China

Heat Resistant Steel Cord Conveyor Belt, High Temperature Conveyor Belt, Heavy Industrial Conveyor Belt Manufacturer

1 - Applications

Heat resistant steel cord conveyor belt is suitable for transporting high temperature materials, such as sintering ore, hot coke, cement clinker, hot casting, etc.

2 - Physical properties of rubber cover

Item Grade T1 T2 T3 T4 Changing range allowed

Hardness Difference between before-aging and after-aging (IRHD) +20 +20 ±20 ±20 Maximum value after aging (IRHD) 85 85 85 85

Tensile strength Change rate of property/ % -25 -30 -40 -40 Minimum value after aging/ MPa 12 10 5 5

Breaking elongation Change rate after aging/ % -50 -50 -55 -55 Minimum value after aging/ % 200 200 180 180 3 - Specification

Specification of steel cord conveyor belt

Belt type ST630 ST800 ST1000 ST1250 ST1600 ST2000 ST2500 ST2800 ST3150 ST3500 ST4000 ST4500 ST5000 ST5400

Min.

tensile strength (N/mm) 630 800 1000 1250 1600 2000 2500 2800 3150 3500 4000 4500 5000 5400

Max.

diameter of steel cord (mm) 3.0 3.5 4.0 4.5 5.0 6.0 7.2 7.5 8.1 8.6 8.9 9.7 10.9 11.3

Min.

Top/Bottom cover thickness (mm) 5.0 5.0 6.0 6.0 6.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.5 9.0

Belt width Number of steel cord

800 75 75 63 63 63 63 50 50 50 50 1000 95 95 79 79 79 79 64 64 64 64 64 59 55 55

1200 113 113 94 94 94 94 76 76 76 77 77 71 66 66

1400 133 133 111 111 111 111 89 89 89 90 90 84 78 78

1600 151 151 126 126 126 126 101 101 101 104 104 96 90 90

1800 171 171 143 143 143 143 114 114 114 117 117 109 102 102

2000 196 196 159 159 159 159 128 128 128 130 130 121 113 113

2200 216 216 176 176 176 176 141 141 141 144 144 134 125 125

Company Contact:

• Posted By: Baoding Huayue Rubber Belts Co., Ltd.

• Phone: 86-312-3912064

• Address: Boye County Economic Development Zone, baoding , hebei , China

• Email:

• Business Description: Baoding Huayue Rubber Belts Co., Ltd started business by producing rubber belts since 1982 - It has been one of top 10 conveyor belts manufacturers and is the major factory of fabric conveyor belt in China.

  It covers an area of about 180666㎡ including building area 26666㎡.

  There are more than 300 staffs in our company.

  Registered capital is 200 million CNY, and annual production capacity is 30 million square meters.

  It has a complete R&D center and Testing Center.

  Our main products include steel cord conveyor belt, EP, Nylon conveyor belt, PVC PVG solid woven fire resistant conveyor belt.

  Anti-tear and fire resistant steel cord conveyor belt, more than 200 subclass types and sizes.
