Pvc Conveyor Belt - China

PVC Conveyor Belt, Solid Woven Conveyor Belt, Fire Resistant Conveyor Belt Factory

1 - Applications

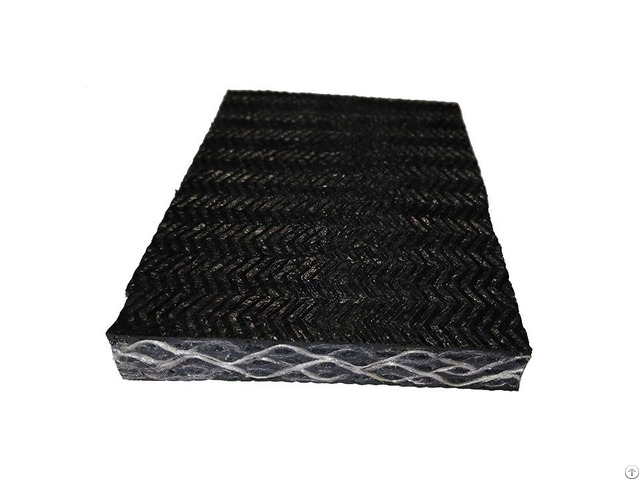

Solid woven fire resistant conveyor belt (PVC type)

The belt is mainly used in underground coal transportation, also in metallurgy and chemical industry.

It is manufactured by plasticizing or vulcanizing solid woven core, which is impregnated in PVC paste.

2 - Characteristics

-high tensile strength

-big-volume & smooth transportation

-good fire/static/impact/abrasi on/corrosion resistance.

-transporting angle＜16 degree 3 - Specification

Type Tensile strength/ N/mm, ≥ Breaking elongation/ %, ≥ Top/bottom cover/mm, ≥ Longitudinal Transversal Longitudinal Transversal 680S 680 265 15 18 1.0

800S 800 280 1000S 1000 300 1250S 1250 350 1400S 1400 350 1600S 1600 400 1800S 1800 400 2000S 2000 400 2240S 2240 450 2500S 2500 450 4 - Safety properties

Item Safety properties

Anti-static test Surface resistance≤3×108Ω

Drum friction test no flame reappear, ≤ 325℃

Alcohol burner test Average value of flame duration of 6 samples with covers, not more than 3s, any single value not more than 10s.

Average value of flame duration of 18 samples without covers, not more than 5s, any single value not more than 15s.

Tunnel propane burning test a.

Undamaged sample length ≥600mm, or

b.

Undamaged sample length ≥50mm, ≤140℃ rising, damaged length≤1250mm 5 - Adhesion strength

Item Between cover and core Inside core

Average value of adhesion strength/ N/mm, ≥ 4 -

Min.

value of adhesion strength/ N/mm, ≥ 3.25 6.5 Huayue started business by producing rubber belts since 1982 - It has been one of Solid Woven Conveyor Belts manufacturers and is the major factory of fabric conveyor belt and Steel Cord Conveyor Belt in China.

Company Contact:

• Posted By: Baoding Huayue Rubber Belts Co., Ltd.

• Phone: 86-312-3912064

• Address: Boye County Economic Development Zone, baoding , hebei , China

• Email:

• Business Description: Baoding Huayue Rubber Belts Co., Ltd started business by producing rubber belts since 1982 - It has been one of top 10 conveyor belts manufacturers and is the major factory of fabric conveyor belt in China.

  It covers an area of about 180666㎡ including building area 26666㎡.

  There are more than 300 staffs in our company.

  Registered capital is 200 million CNY, and annual production capacity is 30 million square meters.

  It has a complete R&D center and Testing Center.

  Our main products include steel cord conveyor belt, EP, Nylon conveyor belt, PVC PVG solid woven fire resistant conveyor belt.

  Anti-tear and fire resistant steel cord conveyor belt, more than 200 subclass types and sizes.
