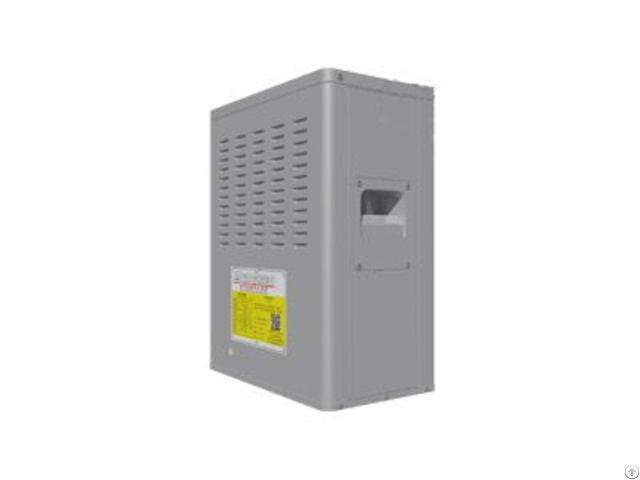

Floor Standing Aerosol Fire Suppression Systems - China

Floor-standing aerosol fire suppression system mainly for the protection of the below fields: archives, restaurants, factories, warehouses, railway stations, high-rise buildings, power distribution rooms, power generator rooms, etc.

below are the main technical data for your reference:

The basic specifications of floor aerosol are listed below: Design density: 130 gram to 150 gram per cubic meter, normally 140 gram per cubic meter.

Product Size: 400 millimeters in length, 300 millimeters in width, and 430, 630, or 830 mm in height.

The basic color of our cylinder: is silver white or red color.

Working Temperature: ranges from -40 degrees Celsius to +70 degrees Celsius.

Activation Mode: power supply DC 3-24 voltage or AC 3-220 voltage, work with a fire alarm system or TAD thermal activation generator.

Wire connection terminal: 5 cores.

Storage Pressure: Normal.

Extinguishing time: when aerosol mass weight is more than 1 kilogram, then the extinguishing time is less than 120 seconds; and when aerosol mass is less than 1 kilogram, then the extinguishing time is less than 40 seconds.

Downtime: less than 30 seconds.

The device’s outlet temperature during discharging: is not more than 180 degrees Celsius at a 5 mm distance.

The device’s shell temperature: is not more than 100 degrees Celsius.

Direct current resistance: 1 to 8 ohms.

Start-up current and time: 1 Ann in every 5 milliseconds.

Maximum safety current and time: 150 milliamps every 5 minutes.

Minimum start-up current and time: 250 milliamps every 5 milliseconds.

Aerosol-forming compound service lifetime is about 7 to 10 years.

Connection between devices: series connection.
