Wall Mounted Aerosol Fire Extinguishing System For Rooms Protection - China

wall-mounted aerosol fire extinguishing system for room protection, such as computer room, data processing room, museums, diesel generator room, switchgear room, power generator room, etc.

below are the main data and technical specifications of this product: Installation style: Wall mounted, to install on the wall or the ceiling above, better no more than 5 meters in height.

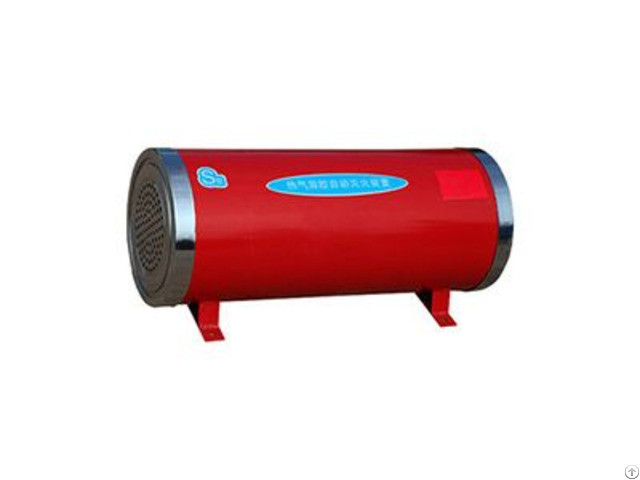

Aerosol cylinder shape: round cylinder shape, just like an indoor air conditioner.

Aerosol cylinder color: Red and other OEM colors.

Aerosol agent weight: 3 kilograms, 5 kilograms, 7.5 kilograms, 8 kilograms, and 10 kilograms for different models and different designs.

Aerosol agent storage pressure: normal.

Aerosol device model number: AW-QRR3GW/S, AW-QRR5GW/S, AW-QRR7.5GW/S, AW-QRR8GW/S, AW-QRR10GW/S, for details please refer to our “Installation Manual”.

Aerosol design concentration: 130 grams to 150 grams per cubic meter, for details please inquire to discuss.

Dimension size of the product: normally diameter is 300 millimeters and the length is 700 millimeters, could be designed as per specialty.

Start-up mode: Electrical or electronics by power supply of DC 3 to 24 Volt, and TAG thermal activation generator could be used together with this device.

Working and operation temperature: from -40°C to +70°C.

Extinguishing time: If the aerosol mass is less than 1 kilogram, then the extinguishing time is less than 40 seconds, and if the aerosol mass weight is more than 1 kilogram, then the extinguishing time is less than 120 seconds.

Downtime: less than 30 seconds.

Outside shell temperature during the period of discharging: less than 180°C at 5 millimeters distance from the outlet location.

Shell temperature at the device: less than 100 degrees Celsius.

Resistance of direct current: one to eight ohms.

Activation current and time: 1 Ann every 5 milliseconds.

Minimum activation current and time: 250 Millie-amps each 5 milliseconds.

Maximum safety current and time: 150 milliamps each 5 minutes.

The life cycle of condensed solid aerosol compound: 7 to 10 years.

Wire connection terminal: 5 cores, including 2 cores for activation purposes, 2 cores for test report purposes, and one for anti-static.

Connection mode between devices: series connection, Series circuit.
