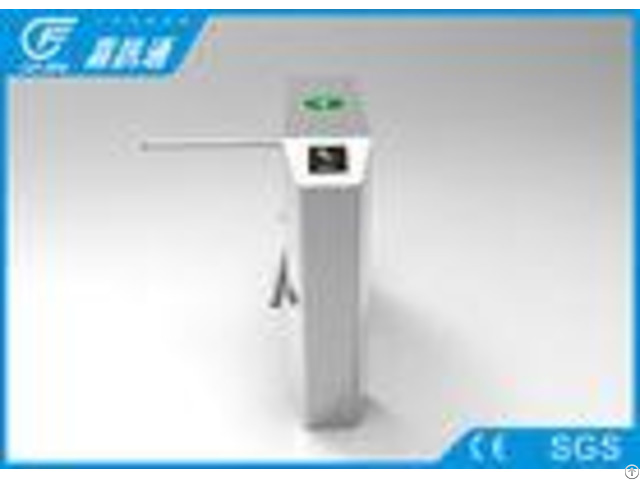

Double Direction Vertical Tripod Turnstile 100w Power Consumption Customized - China

Facrtroy time attendance pedestrian Controlled Tripod Turnstile Gate with Control board Competitive Advantages: 1 - Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments) 2 - Direction guide function, when the turnstile is ready to read card, the yellow light in the middle will turn one; after reading card and ready for passing, the upper blue light will turn on; if try to push the railing without permission, the red light will turn on 3 - Single direction or double direction optional 4 - Railing will be off when power off 5 - Counting function, if read the card for N times, N persons can pass before the railing close, N<=8(optional function) 6 - Voice prompt and display screen available (optional) 7 - External counter can be connected to count number of passed people (optional) 8 - RS485communication, PC command through serial port is allowed (optional) 9 - Alarming output for pushing the railing without permission(optional) Parameters: - - - - Power Supply | AC220V10V, 50Hz / AC110V10V, 60Hz | Power Consumption | 100W | Temperature | -15 to 60 degrees | Humidity | <95%, without concretion | Passage Width | 600mm | Passing Speed | 35 persons/min (normal open), 30persons/min (normal close) | Arm Open/Close Time | 2s | Input Interface | +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA | Communication Interface | RS485 (Distance: <=1200m) / TCP/IP | Working Environment | Indoors or outdoors with shed | - - - - Main feature # Modern stainless steel performance # LED indication on the front panels and top cover # Places for concealed mounting of proximity card readers in the turnstile housing with special LED pictogram indication # Automatic anti-panic function # Outdoor operation without shelter with the temperature range from -20 to + 45 (from -20 C to +55C under the shelter) # Implementation in stainless steel type 316 (optional)

Company Contact:

• Posted By: Shenzhen Jiaxuntong Computer Technology Company

• Phone: 86-755-29838914

• Address: 4th floor Hengling Industrial area Longhua district Shenzhen China, Shenzhen , guangdong , China

• Email:

• Website: https://www.electronicturnstile.com

• Business Description: Established in Y1998, Jiaxuntong computer technology Co., Ltd, is a professional developer and manufacturer of intelligent building access control system and high-end channel equipments including tripod turnstile, swing turnstile, flap turnstile, full height turnstile and speed gate.
