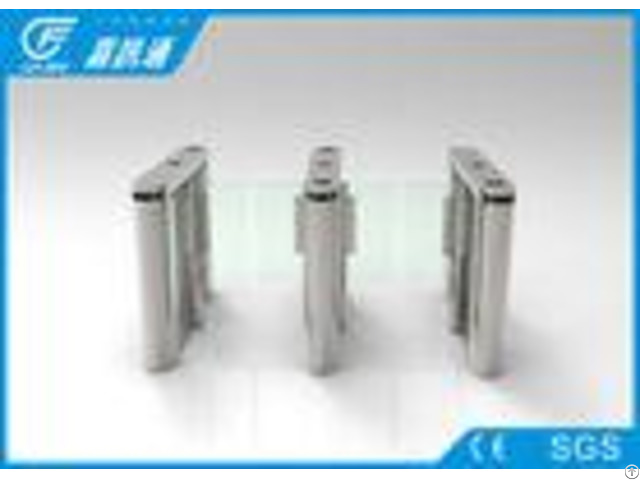

Hotel Access Control Speed Gate Turnstile Id Face Recoginition 1680 1050 Mm - China

Building workers face face recoginition together with ID recoginition access control Speed Gates Speed gates specification * Framework: 304Grade Stainless Steel * Specification: 1680*1050 (mm) * Weight: 80kg * Arm length: <700(mm) * Swing angle: 0-180 * Power voltage: AC220 (10%more or less) V, 50(10%more or less) HZ * Drive voltage: 24V * Interface: standard port-RS485 * LED indicating light: one *Card-reading window: two * Transit speed: 30-40persons per minute * Working Environment: Indoor/Outdoor (with a tent over) * Temperature: 10 below degree to 50 degree * Users: Station/Subway/offices/ai rports/government/market/ exhibition Speed gates description : 1 - With function of self-examine and alarms, it is convenient for users to maintain and use.

2 - The mechanism is locked until a valid open signal is received.

3 - Reset automatically--Go signal will be cancelled if passage through is not completed within pre-set time.

4 - Unit can be adjusted permanent open or close when power off to meet different needs.

5 - Single/double swing--- in and out can be controlled in one direction or both 6 - Door will open when it is powered off, and when power is turned on swing will shut off automatically.

7 - Unit can be controlled and administered by remote control 8 - It will raise the alarm by means of a sound or light when someone pushes in illegally.

9 - Count function 10 - Reset automatically by infrared.

11 - Arms can be lengthened.

Advantage : 1 - Matt finished housing surface, dustproof and rainproof design for outdoor use.

2 - Durable DC brushless motor, highly integrated mechanism, 100% heavy duty operation.

3 - Sufficient infrared sensors for protection, anti-intrusion, and anti-tailgating.

4 - Compatible with other access control system.

5 - Convenient installation and maintenance OUBLE SAFETY Door will automatically reverse once safety IR detected obstacle or when a small force is detected blocking its motion.

This dual detection feature is to prevent injury caused by door hitting people.

EASY INTEGRATION A push button or access control reader can be used to trigger the swing barrier to open via simple dry contact signal.

After delay timer elapsed, swing barrier will automatically close back by itself.

Indicator Light Equipped with LED indicator, it is showing passing status, the indicator installed in the right hand side of the gate is visible clearly.

When LED is green, it means valid certificates, can pass.

When LED is red, it means invalid certificates, can't pass.

Application CBD business centers, government-enterprise office buildings, financial institutions, sports arenas and scenic spots etc.

Project Case

Company Contact:

• Posted By: Shenzhen Jiaxuntong Computer Technology Company

• Phone: 86-755-29838914

• Address: 4th floor Hengling Industrial area Longhua district Shenzhen China, Shenzhen , guangdong , China

• Email:

• Website: https://www.electronicturnstile.com

• Business Description: Established in Y1998, Jiaxuntong computer technology Co., Ltd, is a professional developer and manufacturer of intelligent building access control system and high-end channel equipments including tripod turnstile, swing turnstile, flap turnstile, full height turnstile and speed gate.
