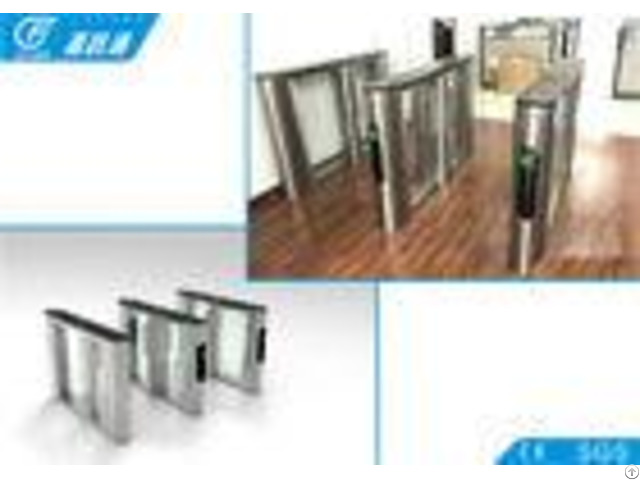

Rfid Card System Flap Gate Barrier 550mm Width Sus304 Housing For Metro Station - China

Jiaxuntong Flap Barrier Description No maintenance all the of life, No Attrition, Low-noise, High Intelligence;anti-tag after, anti-hit against.

1 - Flap Gate Technical Parameters : - - - - 1 | Power | AC220/11010V, 50/60HZ; | 2 | Operating Temperature | -45-60 | 3 | Relative Humidity | 95%, No Condensation | 4 | Passage Width | 550mm | 5 | Passing Speed | Normally open-50persons/min; Normally closed-50persons/min | 6 | Manufacturing Technique | CNC laser cutting | 7 | Motor | DC motor, 140W/24V | 8 | Gate Opening and Closing time | 0.4S | 9 | Infrared Sensors | 4 or 6 Pairs | 10 | Working environment | indoor and outdoor(added the rainshed) | 11 | Motor Operation Speed | 1600R/Min | 12 | Communication Distance | 1200M | 13 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms | 14 | Communication Connection | RS485 Communication | | Barrier Material | Acrylic glass, SS304 and so on | 15 | Material | Stainless steel 304, thickness is no less than 1.5mm | 16 | Running Life | 5--8 Million(Continuous Opening and Closing Operation) | 17 | Protect Level | IP54 | 18 | Size | 1400*320*985mm | 19 | Colour | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like | 20 | Operation Place | Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprises Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control | - - - - 2 - Flap Gate Functions& Features : 1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

2) DCMotor, Maintenance Free 3) On-line or off line mode(optional) 4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation 5) With direction indication, guiding passenger to entry and exit.

6) Self automatic locking to prevent force passing without the card 7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90, 000 8) Light and sound alarm indication function, preventing illegal entry or irregular passing 9) Powerful on-line intelligent control mode, facilitating you: A) To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.

B) To set up operation mode for passage entry and exit.

C) To read card with multiple times, the special function meeting the application requirements of a particular site.

D) To set up the card reading with or without memory.

E) To select a reasonable normally open or close mode, to divert the flow of passengers effectively.

F) Setting function humanized for reset of over time passing.

10) The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.

12) The processing mode in emergency or in special conditions.

13) Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.

14) Super combination capability, with the combined application of products of different passage types and series, not affecting the system performance.

15) Strong system expending capability, available to add new product at any time 16) Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection 17) Resetting automatically.

after reading card, if the passer didnt pass at set time, the system will cancel pass permission automatically, the administrator can set the passing time by himself.

18) Only one person can pass with one card, anti-tag after, anti-hit against 19) Installed in indoor or outdoor 20) Bi-directional passing or single way passing.

21) Ensure rapid, efficient and safe access control 22) No noise, long life FAQ: 1 - What is the warranty for the machine? Whithin 12 months, if any problems, we will offer the accessories(but you pay the freight cost) 2 - Can machines be used at outside? With waterproof function, could be used at outsise.

3 - When will you make the delivery? Regular products: (3-5 days) 4 - How does your factory control the quality? Quality controlling from the beginning to the ending.

5 - What is your MOQ? Any quantity is acceptable.

6 - payment term? 30% by T/T, 70% by T/T before delivery.

Package: 1 - Size: 1450x420x1100mm 2 - Gross Weight: 75KG 3 - Package: Export packing, plywood box
