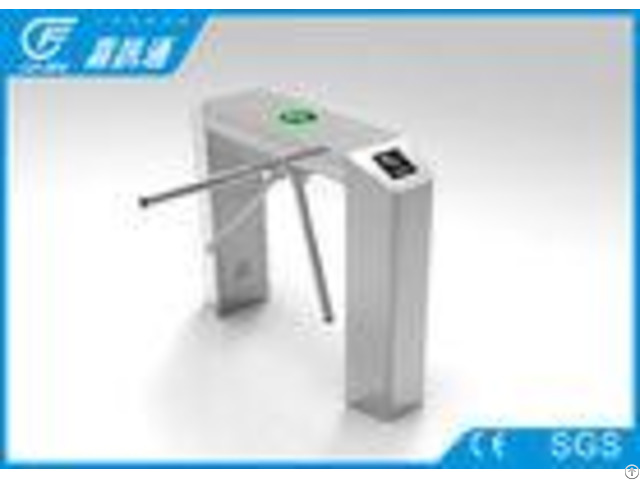

Waterproof Bi Direction Tripod Turnstile Outdoorautomatic Anti Panic Function Turnstiles Gates - China

Waterproof bi-direction Tripod Turnstile outdoorautomatic anti-panic function turnstiles gates Feature & description 1 - The electric control adopts DC motor to drive stable and reliable, and has low failure rate.

Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently; 2 - In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.

3 - The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.

4 - Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.

5 - The bicycle delay function: prevent the gate from hitting the bicycle; 6 - Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.

7 - The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.

8 - Various control functions: external button, remote control, bar code, IC or ID, etc.

9 - Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.

10 - Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds Main feature # Modern stainless steel performance # LED indication on the front panels and top cover # Places for concealed mounting of proximity card readers in the turnstile housing with special LED pictogram indication # Automatic anti-panic function # Outdoor operation without shelter with the temperature range from -20 to + 45 (from -20 C to +55C under the shelter) # Implementation in stainless steel type 316 (optional) Technical Specification Delivery set # Turnstile with built-in electronics # Automatic anti-panic folding arms # RC panel The box turnstile features radio-transparent top covers made of ABS-plastic for concealed mounting of proximity card readers inside the housing.

The card reader operating zones on each side of the top cover are indicated with special pictograms.

The top covers are also completed with pictorial screens, indicating turnstile operation modes.

Turnstile has a comfortable passage zone width (560 mm).

Automatic "Anti-panic" barrier arms enable immediate clear of the passage for urgent evacuation of people in emergency case.

Emergency unblocking of the turnstile is performed by input of the Fire Alarm signal to the turnstile or in emergency power failure.

At that the barrier arm automatically falls down ensuring free passage.

When power supply is restored or Fire Alarm signal is removed, the arm shall be manually set into operating position.

TTD-08 box turnstile is made of stainless steel which provides not only elegant design, but also resistance to corrosion when used outdoors.

Power supply board is placed in the turnstile housing and provides a full set of the turnstile control modes.

Board allows an emergency passage opening on fire alarm signal (input Fire Alarm) and has inputs for connection of intrusion detector with siren and inputs for connection of remote indicators.

To ensure fast and convenient passage it is recommended to install one turnstile per 500 people working the same shift, and on the basis of maximum working load 30 persons/min.

Turnstiles can also be completed with railings, produced in the same design.

Characteristics - - - - Power consumption | 12 V DC | Operating voltage | 72 W | Mean time to failure | 1 500 000 passages | Throughput rate (in the single passage mode) | 30 persons/min | Throughput rate (in the free passage mode) | 60 persons/min | IP Code | IP54 | Mean lifetime | 10 year | - - - -
