Double Axis Rotating Rate And Position Tables For Electronic Motion Sensor Validation - China

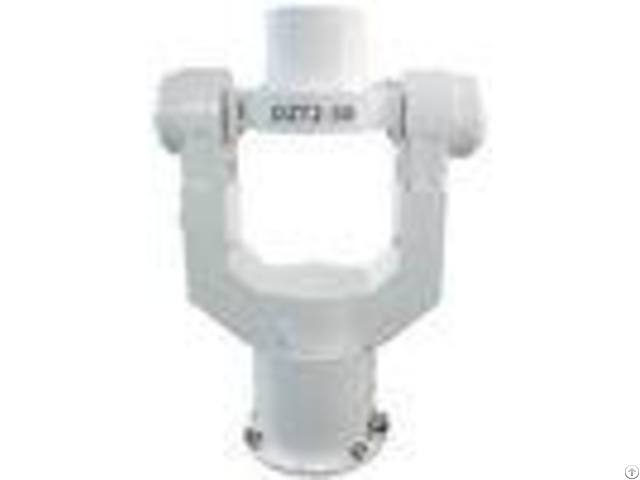

2-Axis Rotating Table Product Description: 2 axis rotating table is a multi-functional simulation-measuring device with U-Ostructure.

It can provide theposition, rate, swing etc.

functions and meet therequirement of all function tests and experiments for the inertial system andinertial parts.

The table is operated and controlled by industrial computer with high precise poisoning capability, smooth rate, small degree of distortion and good dynamic characteristics.

Technical Specification: - - - - Payload capability | 50Kg | Payload dimension | 500500mm | Tableweight | About 500Kg | Table dimension | 530mm | Beating | 0.015mm | Wobble error | 2 | Axes verticality | 3 | Rotational angle range | Continuous, unlimited | Operation mode | Position, rate, swing | Slip ring | User's slip ring(customized number and power) | Electrical control cabinet | Customized cabinet | Computer system | Industrial control computer, Windows interface, RS422(100Hz), can receive and send synchronized signal | Safety precaution | Overspeed emergency stop power off protection | Ambient temperature | 20C5C | Angular position measuring accuracy | 1 | Angular position measuring resolution | 0.36 | Angular position measuring repeatability | 1 | Angular position control accuracy | 1 | Rate range | Inner: 0.001/s~300/s;outer : 0.001/s~300/s | Rate resolution | 0.0001/s | Rate accuracy and stability | 0.001%(360average) | Maximum acceleration | 100/s2 | - - - - Company information Situated in the East Lake High Tech Development Zone, Wuhan Huazhiyang Technology Co., Ltd. is a high tech enterprise established in converting the military technology into civilian product and industrialization, The company has been approved by ISO 9001 quality control system and ISO 14001 environmental system, it is identified as high tech enterprise by Wuhan government, has the self-supported import and export right.

Our company owns a group of well educated personnel with research and development ability and management ability, and also has a composite, high efficient, marketing and after service team.

The scientific and technical personnel make up 68% of the total employees, with optimized personnel structure and high specialization.

Our company is engaged in research and development, production, technical sales and service etc.

of the optical products including large scale electro-optics system, measurement and control system, military series ruggedized displays etc.

The company has provided high quality products and servings for over 20 industries including water conservancy, electrical power, chemical industry, petroleum, manufacture of building materials, automotive manufacturing, aerospace, weapons, ship, police, armed police, frontier defense, customs, maritime, salvage, fishery administration, maritime monitoring etc.

Payment terms T/T, L/C Packaging & Shipping # Packaging: carton with sponge # Delivery time: within 7 business days for common order after we receive the full payment Our services Pre-sale service # Evaluate your application, recommend the most suitable item; # Make you fully understand the products, usage and maintenance # Answer all your questions, and let you have no doubt before make any decision; # Adjust, revise or redesign our products to consist with the application (for customized service); Sales service # Recommend the best payment term and shipping term for you; # Make your official quotation and PI with company Stamp; # Keep you posted about the products producing; # Send exactly required products on time; # Provide tracking No.

and inform you when products leave factory and arrive destination; Post-sale service # Instruct products connection, installation and application; # If anything happen to products (barely will), engineer will evaluate the problem, solve the problem or exchange the malfunction item for free, make sure you get the best solution and service.

# Keep tracking the products usage and ask for suggestion and advise.

FAQ Q: Why choose us? A: Excellent quality, manufacture price, many experience professional technician, free training.

Adhering to quality products, excellent service Q: Can be customize products according to the requirement? A: YES, the product is designed according to the requirements Q: If your price is higher than another company or factories? A: Please check, what is the different of the Products parts, material, service and guarantee, especially the Products technical content.

Believe you will choose products of good value for money, not cheaper products.

Q: How about the warranty? A: All of our products have 12 months warranty.

free technical support.

Q: What package dose your factory use? A: International standard carton packaging as your requirement.

Q: what payment terms you can accept A: Telegraphic Transfer(T/T) or L/C.
