Electro Optics Maritime Monitoring Systems Automatic Vessel Tracking System All Weather - China

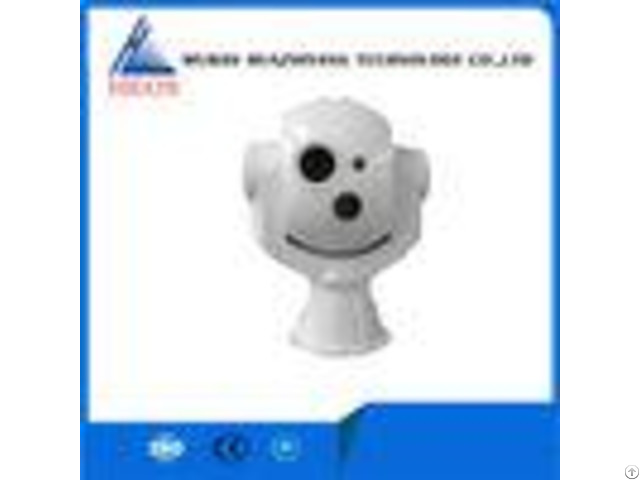

Shipboard electro-optics tracking, monitoring (evidence-taking) system Description The director of HEOS series shipboard electro-optics tracking, monitoring (evidence-taking) system is installed on the top deck of the ship, display and control console is installed in the pilot room.

The targets are observed, monitored and searched by the high performance color CCD camera system in the daytime, are searched and observed by the infrared thermal imaging system at night.

HEOS series shipboard electro-optics tracking, monitoring (evidence-taking) system adopts advanced gyroscope stabilized technology, and computer image processing and control technology, it is able to effectively isolate from the swaying of the ship, and detect, track, monitor and record sea environment, sea ships and floater and air targets.

Main functions # Perform observation, monitoring and search for the targets on air and sea targets in all weather conditions in 24h.

# Provide manual and automatic scan and search for the target # Provide automatic target tracking # Provide the radar guidance and tracking function # Gyroscope servo stabilization to effectively isolate the ship from swaying # Color, B/W, infrared, thermal imaging multi-channel imaging system # Provide electric control of focus, zoom etc.

# Provide real-time video recording function, receive the information date from compass, GPS (Beidou), radar.

display the information on the same screen and record time and date # Provide long range control function # Provide good anti-vibration and anti-shock capability designed for adverse sea environment # Provide interface of RS422, 100M Ethernet and video output.

# Outboard director charged with nitrogen is wholly sealed in order to operate in long use in the adverse sea salt atmospheric environment.

# Provide certificate of type approval and CCS product certification Application areas # Law enforcement official ship: maritime monitoring ship, maritime patrol ship, fishery administration ship, customs anti-smuggling ship and maritime police vessel # Rescue ship, salvage vessel and high speed passenger vessel # Electro-optics shore-based monitoring and search system Main specification - - - - Type | HEOS-300A | HEOS-300B | HEOS-300C | HEOS-103 | Electro-optics sensor | CCD video system | Camera | 1/1.8CCD, 3 million pixel high resolution dual-mode camera | 1/2CCD, color/B/W dual-mode camera | 1/2CCD, color/B/W dual-mode camera | Lens | 20~700mm | 15~370mm | 200mm | IR imager | Detector | Cooled type: operational waveband 3~5m, NETD30mK | Uncooled type: operational waveband 7.5~13.5m, NETD50mK | Lens | 30/150/500mm 3 zoom or 75/300mm two zoom | 44mm/132mm 2 zoom or 75mm, 100mm focus | 44mm/132mm 2 zoom or 75mm focus | Laser (optical) | Illuminator | Wavelength 810nm, output power10W; divergence angle 1~10, continuously adjustable | Dazzler | Wavelength 532nm, output power2000mW, continuously adjustable; divergence angle2mrad; flash frequency 0~20Hz, continuously adjustable; operational distance: daytime1km, night2km | Range-finder | Range: 150m~5km, 150m~10km optional; accuracy: 5m | None | Electro-optics director | Rotation range | Pan: 170/0~360; Tilt: -60~+85adjustable | Pan: 360continuously; Tilt: -60~+30adjustable | Maximum speed | 40/s | Pan: 30/s; Tilt: 15/s | Maximum acceleration | 120/s | 100/s | 60/s | | Gyro stabilization | Yes | Optional | Auto tracking | Yes | None | Outline dimension | Turning radius: 350mm; Height: 1100mm | Turning radius: 300mm; Height: 850mm | Turning radius: 250mm; Height: 750mm | Turning radius: 430mm; Height: 475mm | Weight | 120kg | 80kg | 60kg | 50kg | Display and control console | Display | 19/23 | 15 | Hard disk video recorder | High resolution digital and standard analog video recorder, over 15days continuously record period | Standard analog video recorder | Electrical interface | Video interface | BNC/network | Communication interface | RS422/RS232/RS485/network | None | Weight | 72kg | 70kg | 50kg | 20kg | Operational distance | In condition of good visibility, target ship: 24m x 8m, ship name &ship no: 0.6m x 0.6m | Daytime | Detect target ship | 25km | 15km | Detection distance for person in water1.5km | Recognize target ship | 15km | 7km | Indentify ship no.

| 1.5km | 1.5km | Night | Detect target ship | 20km | 7km | Detection distance for person in water600m | Recognize target ship | 10km | 3km | Indentify ship no.

| 1km | 1km | Environmental adaptability | Operational temperature | Outboard: -20~+55, inboard: -10~+45 | Storage temperature | Outboard: -20~+55, inboard: -10~+45 | Rainfall, compact, vibration, moisture, salt spray | Outboard director GJB150, inboard display and control device GB/T6994 | - - - -
