Optical Fingerprint Recognition Embedded Modules - Taiwan

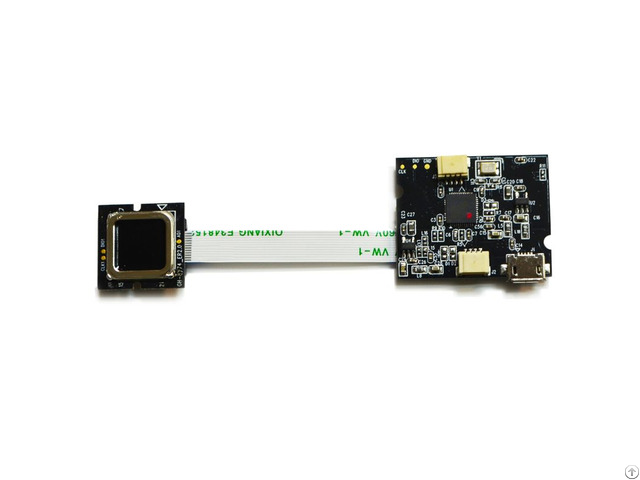

The Digimore FPM-8111 is one chip fingerprint reader designed for integration into products with USB 2.0 full speed interface.

It is also configured as a USB mass storage device so it does not require a driver.

The module built in high quality hybrid sensor with sufficient effective area.

The reader within the Holtek HT32F2755 device is high performance, low power consumption 32-bit microcontrollers based around an ARM® Cortex™-M3 processor core and the fingerprint algorithm is processed on it.

The self-developed algorithm is able to provide a variety of total solutions for embedded and PC applications.

It also provides Windows and Android SDK for customer easy to develop their applications.

SPECIFICATION

* CPU : ARM Cortex M3 Core (Holtek HT32F2755)

* Sensor : Ultra-thin hybrid sensor; SPI sensor image output; works well with dry, moist or rough fingerprints

* Effective Area of the Sensor : 8 x 8 (mm)

* Resolution/ Image Size : 1000/ 508 dpi; 320 x 320/160 x 160 pixels

* Number of fingerprints : Support up to 20 fingerprints

* Algorithm Matching Mode : 1 : 1, 1 : N

* Size of Template : 496 bytes (template) + 2 bytes (checksum)

* Interface : USB 2.0, UART, SPI, easy to develop

* FAR/ FRR : False Acceptance Rate (FAR) < 0.01%; False Rejection Rate (FRR) < 0.1%

* Enrollment Time/ Identification Time : <10 sec.

(10 fingerprints); <1.0 sec.

(20 fingerprints)

* Operating Voltage/ Current : USB 5V; < 130mA

* Operating Temperature : -20 to 60 degrees Celsius (20% to 80% RH, 25 degree Celsius)

* Storage Temperature : -20 to 70 degrees Celsius (10% to 80% RH, 25 degree Celsius)

* SDK Demo Support : Yes, Logical design also available upon requested

* System Compatibility : Support embedded development, Linux, Android and Windows.
