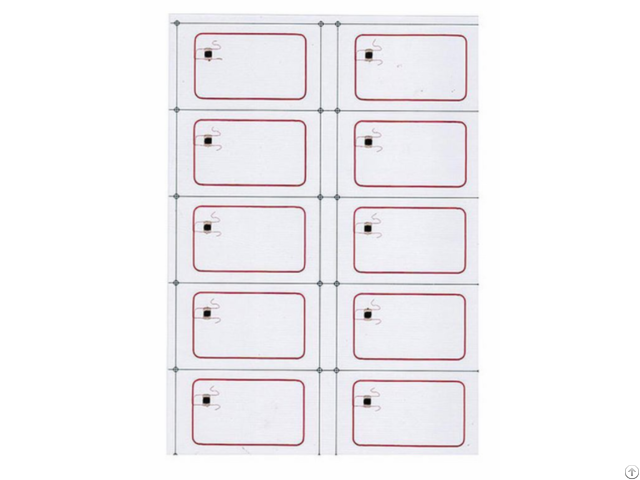

125khz Passive Rfid Nfc Contactless Em Em4305 Tk4100 Em4200 T5577 Wet Dry Pet Pvc Card Inlay Sheet - China

Material PVC, PC, PET Color White or Transparent Standard ISO14443, ISO15693, ISO 18000, etc.

Dimension 310*468mm, Max.

size 520*420mm, A4 210*297mm, etc.

Layout 2*5, 4*5, 5*5, 4*6, 4*7, 4*8, 4*10, 3*6, 3*7, 3*8, 6*7, 6*8, 6*14 or customized.

Thickness HF: normal 0.45mm, 0.5mm, min.

0.3mm LF: normal 0.6mm, Min.

0.5mm UHF: 0.6mm, 0.5mm Frequency 100-150 KHz, 13.56 MHz, 860-960 MHz Protocal ISO/IEC 11784/785, ISO14443A, ISO15693, ISO18000-6C Chip LF: TK 4100, EM 4200, EM 4305, T5577, HID, HITAG 1, HITAG 2, HITAG S, etc HF: FM11RF08, MF S50, FM11RF32N, MF S70(4KB), ICODE SLI, ICODE SLI-X, ICODE SLI-S, MF UTL EV1, MF UTL-C, MF D21, MF D41, MF D81, MF PLUS S, MF PLUS X, MF PLUS X, TAG-IT, NTAG 213, NTAG 215, NTAG 216, TOPAZ512, etc UHF: U-CODE EPC G2, U-CODE G2XL, U-CODE G2XM, Alien H3, Alien H4, Monza 3, Monza 4, Monza 5, etc Memory 512 bits, 128 bits, 1K Byte, 4K Byte, 144 Byte, 888 Byte, etc Antenna HF: AL Etching, Pre-winding Copper Coil, Altrasonic Embeding LF: Pre-winding Copper Coli, AL Etching UHF: AL Etching Read Range more than 50mm with our reader Work Temperature -25℃ ~ +55℃ Store Temperature -25℃ ~ +65℃ Applications Access Control & Security, Time Attendance, Logical Access, Public Transport, City Card, etc.

Brand: WLT
