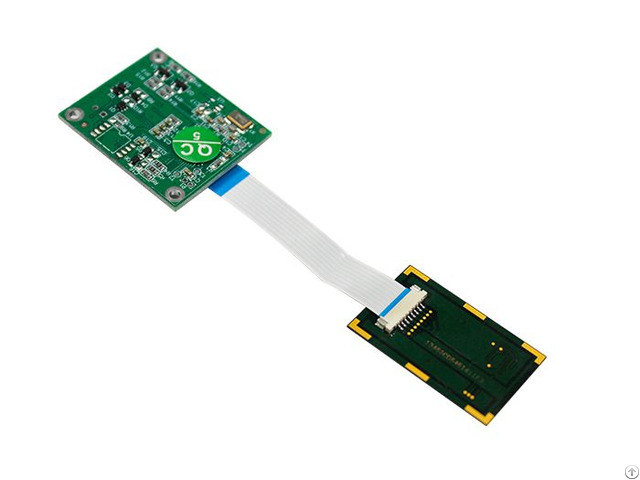

SM-205BJR Standalone Capacitive Fingerprint Embedded Module

Biometric OEM Module

OVERVIEW:

Miaxis SM-205BJR fingerprint module is a high-performance standalone fingerprint modules equipped with reliable high quality capacitive sensor and powerful CPU while power efficient.

1: 1 verification time in 300 msec and fast power-on time.

integrated fingerprint module FEATURES:

• 363 dpi resolution

• FPC1011F capacitive sensor

• 1: 1 verification in 300 msec

• Low power-consumption

• Fast power-on time

• multiple interfaces UART&USB for easy development

fingerprint OEM modules SPECIFICATION:

Specification SM-205BJR

CPU 84MHz, Cortex-M4

Flash memory 1MB

(Expandable up to 16MB)

Board Size(L x W x H) 35.0× 30.0× 7.5mm

Sensor Size 33.4 x 20.4 x 2.4mm

Sensor type Capacitive

Sensor name FPC1011F

Active platen area 10.64 x 14mm

Image Size 152 x 200 pixel

Image resolution 363dpi

Grey scale 8 bit (256 levels)

Power-on time ≤200ms

Enrollment time

(Finger touch to template) ≤250ms

1: 1 Verification time(feature extraction + 1: 1 matching) ≤300ms

1: N Matching time ≤1s, N=256

FAR ≤0.001%

FRR ≤1%

Template size 256 bytes default

Fingerprint capacity 1000 templates(Expandable)

Live finger detection Yes

ESD immunity ±8kV contact discharge

±15kV air discharge

Supply voltage DC 5V±5%

Supply current ≤70mA

Communication interface USB&UART

Operating Temperature -10°C to +50°C

Storage Temperature -20°C to +60°C

Operating humidity 20%RH～90%RH

The company is Chinese's industry-leading developer and manufacturer of biometric system and fingerprint recognition algorithm.

Based on over 18 years of industry experience and we are the key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.
