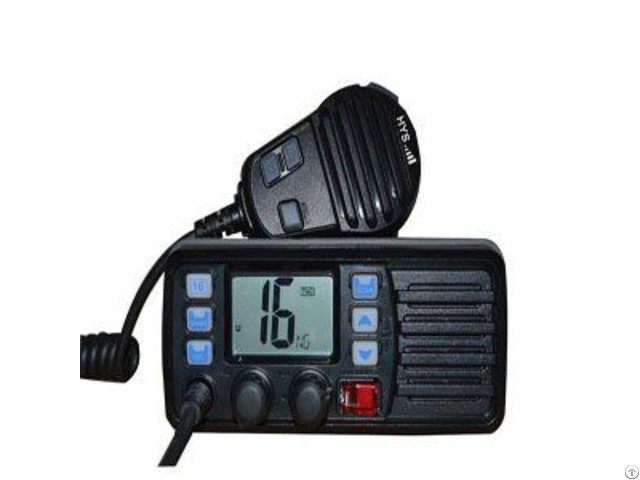

Hf Marine Radio Fm Transceiver Tc 507m - China

Marine Radio Manufacturer Truest Provides Portable HF Marine Radio, Buil-in DSC, GPS receiver, large screen, IP-X7 water proof class, 88 channels.

Main Features:

1 - Dual Bands Frequency Watch or Three Bands Frequency Watch.

2 - Buil-in DSC.

3 - Favorite Channel Selectable.

4 - Aqua Quake Draining.

5 - 10 Weather Channels And Weather Alert.

6 - Large LED Display (Easy to see, Easy to operate).

7 - 1 Meter Depth For 30 Minutes Water-proof, IP-X7 Water proof Class.

8 - External GPS Receiver.

9 - Scan Resume Timer.

Technical Specifications:

General:

1 - Frequency Range: TX: 156.025-157.425MHz, RX: 156.050-163.275MHz, 2 - Channel No: 88 channels.

3 - Type of Emission: FM (16K0G3E), DSC(16K0G2B).

4 - Frequency Stability: ±2.5ppm.

5 - Work Voltage (V): DC13.8V (±15%).

6 - Operating Temperature: -20°C to 60°C.

7 - Antenna Impedance: 50Ω.

8 - Dimensions(W×H×D): 153×67×152mm.

9 - Weight: 742g.

Transmitter:

1 - RF Power Output: High 25W/ Low 1W.

2 - Maximum Frequency Deviation: ±5KHz.

3 - Spurious and Harmonic: ≤ -70dB(H), ≤ -56dB(L).

4 - Adjacent Channel Selectivity: ≥70dB.

5 - TX Audio Distortion: ≤10%.

6 - Current Consumption: ≤ 5.5A (High power), ≤ 1.5A (Low power).

7 - Input Impedance: 2KΩ (Microphone).

Receiver:

1 - RX Sensitivity: ≤0.2μV.

2 - Squelch Sensitivity: ±5KHz.

3 - Adjacent Channel Selectivity: ≥70dB.

4 - Intermodulation Anti-interference: ≥70dB.

5 - Spurious Response Rejection: ≥70dB.

6 - Max RX Current (mA) : ≤1.5A.

7 - Rated Audio Output Power: ≥4.5W (10%).

8 - GPS Signal Format: NMEA0183-2.0.

9 - Output Impedance: 4Ω (Speaker).
