Single Fingerprint Reader Fpr 210e - China

single fingerprint reader FPR-210E National ID Biometric Hardwares

Fingerprint Scanner

OVERVIEW:

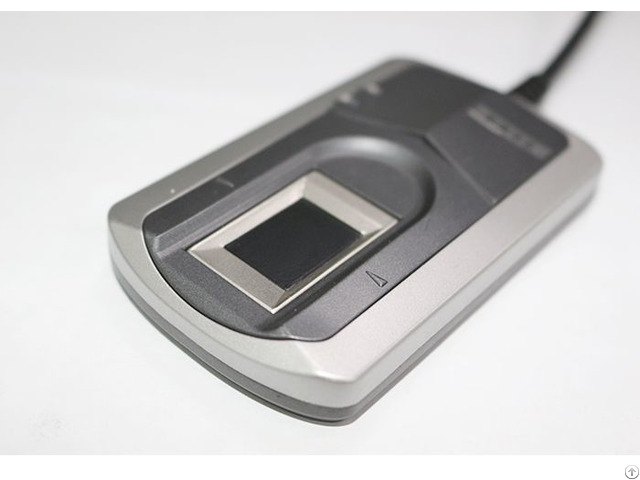

Miaxis FPR-210E capacitive fingerprint reader is born for Chinese resident ID card program, with adopted large 12.8*18 mm active sensing area UPEK TCS1 capacitive sensor and high-performance processor for fast fingerprint recognition speed under the control of PC or upper computers.

Easy to operation with standard USB interface.

custom optical fingerprint scanner FEATURES:

• 508 dpi resolution

• Large active sensing area 12.8*18 mm

• Certified by Chinese Minstry of Public Security for national ID program

• Standard USB interface, plug&play device

• Live Fingerprint Detection

• Strong Adaptation for wet/dry fingers single-digit optical fingerprint scanner SPECIFICATION:

Index FPR-210E

Product size(L x W x H) 88.5 x 55.0 x 16.5mm

Sensor type Capacitive sensor, TCS1

Active platen area 12.8 x 18 mm

Image Size (pixel) 256 x 360 pixel

Image resolution 508dpi

Gray Scale 8 bit (256 levels)

Live Finger Detection Yes

Platen Ingress Protection(sensor surface) IP65

ESD immunity ±8kV contact discharge

±15kV air discharge

Supply Voltage DC 5V±5%

Supply current ≤150mA

Communication Interface USB

Operating Temperature -10°C to +50°C

Storage Temperature -20°C to +60°C

Operating humidity 20%RH～90%RH

Device Weight(g) 90g approx.

Operating system environment Windows xp/ 7 / 8 / 10, Android, Linux

The company is Chinese's industry-leading developer and manufacturer of biometric system and fingerprint recognition algorithm.

Based on over 18 years of industry experience and we are the key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.

Company Contact:

• Posted By: MIAXIS BIOMETRICS CO., LTD.

• Phone: +86-571-81951610

• Address: 5 Floor, Science&technology Building, East Software Park,No.90,Wensan Rd, Hangzhou,China , zhejiang , China

• Email:

• Website: https://www.miaxis.net/

• Business Description: Founded in 2000 and headquartered in Hangzhou, Miaxis Biometrics Co., Ltd, a subsidiary of XGD.

  COM, is Chinese's industry-leading developer and manufacturer of biometric fingerprint devices and multi-biometrics systems (facial,fingerprint,finge r vein etc) for identity management with core technologies of image processing and world renowned biometric recognition algorithms.

  We provide both advanced capacitive & optical fingerprint scanner and verification terminal series and turnkey biometric solution including smart E-door lock system solution, visiting access control management soluiton, bank teller fingerprint management solution and so on, widely applied to finance, security, government affairs, police, home automation industries.

  Based on over 18 years of industry experience, Miaxis is the pioneer of fingerprint recognition technology in domestic financial industry with more than 50% market share and key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.
