Smart Verification Desktop Mr860 - China

Smart Verification Desktop MR860 ISO 7816 contact card fingerprint reader

Biometric Smart Card Reader

OVERVIEW:

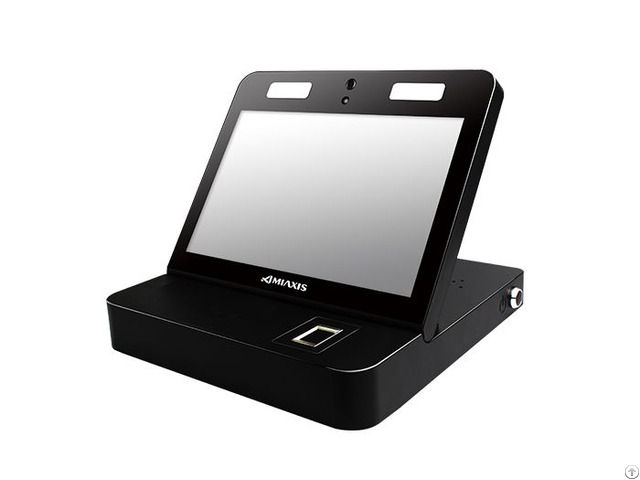

MR-860 is a two-way biometric authentication desktop, combining fingerprint and face recognition technology to verify a person from a digital face image or fingerprint.

The MR-860 is able to read an contactless ID card (ISO14443, Type A&B card) with biometric

data stored on it.

It combines on-board and server-driven remote identification.

A memory extension (micro SD slot) and wireless communication standards (2G, 3G, 4G/Bluetooth/WIFI) open the future of Smart Verification.

FEATURES:

● 508dpi capacitive fingerprint scanner with large finger capture area

● 2M Camera for photo capturing

● 10.1inch IPS tft display with multi-touch capacitive touch panel

● contactless card reader (ISO14443, Type A&B card)

● 2G/3G/4G, WIFI, Bluetooth, TCP/IP, GPS (optional)

● On-device or remote authentication

● Android 4.4.4

● Multi-interface, USB host port, USB OTG interface, RJ45 interface, HDMI interface

desktop fingerprint card reader SPECIFICATION:

Specification MR-860

Power&Battery DC 12V Power adapter; built-in Li-on battery(optional)

Peak current <=1500mA/DC 12V

ESD IEC 61000-4-2 Level 2 ±8 kV Air discharge, ±4 kV Contact discharge

Hardware parameter CPU: 2.0GHz 8-core; RAM: DDR 1GB; Flash: EMMC 8GB

OS Android 4.4.4

Communication WIFI 802.11 b/g/n; Bluetooth 4.0; 3G/4G (optional); TCP/IP

Watchdog Support watchdog SW

Display+Touch panel 10.1inch IPS TFT-display, 1280*800, 350nits luminance

Supports for external max.

22inch display

G+G Capacitive TP, at least 2-point touch fingers

Contactless smart card reader Supports for ISO14443, Type A&B card

Fingerprint module(optional) Capacitive sensor, TCS1 Active platen area 12.8x18mm Image resolution is 256x360 pixel, 508 DPI Fingerprint template size is 512K byte

Camera 2MP camera (front facing)

Audio 1 loudspeaker, supports voice reminding

Power switch Power switch button

Face recognition algorithm performance 1: 1 verification within 2secs

Recognition rate>99%

Fingerprint algorithm performance EER<0.1%

FAR ≤0 - 001 % FRR ≤1 %

Device ports DC charging interface+USB host port+USB Device /OTG interface

+RJ45 interface + HDMI interface

Card slot 1 SD/TF card slot, 1 SIM card slot(optional)

Device Size&Weight 275mm*250mm*50mm(L× W× H), 1.83kg N.W.

Environment St.

Temp: -20~+60℃; Op.

Temp: 0~+50℃
