Eight Port Fast Poe Switch - China

S1009-P

9 RJ-45 10/100M Ports POE Switch with power adapter

Products Description:

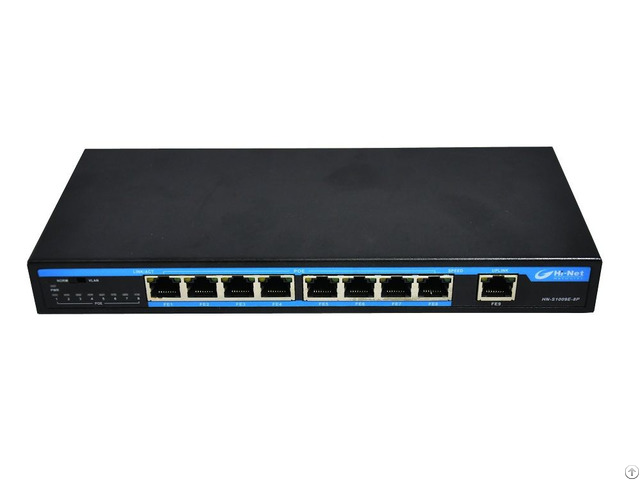

The S1009-P is a 9 ports POE switch which is designed by Shenzhen Hi-Net Technology Company.

It provides 9 10/100M RJ45 Ports and 4 or 8 PoE Ports.

The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

The S1009-P is a small size metal-shell device which is useful for the small office, home and the IP solution project using.

All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max.

Three optional power supplies for your choice (65W, 96W, 135W, can choose from the order list).

Extend Function: Port Lightning protection, Power lightning protection, solid vlan.

Product Features:

• IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

• Provides 9 10/100Base-TX ports

• Provides 4 or 8 PoE Port, each port output 30W max power

• Reliable Power Adapter supply power for both network switch and POE

• Three optional power adapters: 65W, 96W, 135W

• 4K entry MAC address table of the PoE switch with auto-learning and auto-aging

• High back-plane bandwidth 1.8Gbps

• IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode

• Surge protection for power port and data ports

• Compact metal case for desktop or wall-mounting

• EMI standards complies with FCC, CE class B

• Extend Function: Port Lightning protection, Power lightning protection, solid vlan.

Product Specifications:

Item Description

Summarize

Fixed port 9 10/100Base-TX ports.

POE Port 8 POE Ports(1-8 Port) or 4 POE ports(1-4 Port)

LED Indicators PWR, PoE, Link/Act LED.

Input voltage 100V～240V AC, 50/60Hz (for power adapter)

48VDC (for PoE switch)

Network Standard IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, IEEE 802.3az

Network Media 10BASE-TX: UTP category 5, 5e cable (≤250m)

100BASE-TX: UTP category 5, 5e cable (≤150m)

Power Supplies 65W, 96W, 135W Optional

Operating temperature 0℃～40℃.

Storage temperature -10℃～70℃.

Relative humidity 20%～85% (non-condensing).

Thermal methods Fanless.

Switching capacity 1.8G.

MAC address table 4K.

Traffic control IEEE 802.3x full-duplex flow control.

Size 205*122*33.5cm

Weight <2KG

Package S1009-P POE switch

User Manual

Power Adapter

Power Cable

Warranty Card

PoE

PoE port 4/8 10/100Base-TX ports.

PoE Standard IEEE802.3af, IEEE802.3at, per port 15.4W and 30W(MAX), Pin assignment V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).

Extend Function Port Lightning protection, Power lightning protection, solid vlan.

Order Information:

S1009-4P-65W 9 ports Network Switch with 4 PoE Ports (Total 65W Power)

S1009-8P-65W 9 ports Network Switch with 4 PoE Ports (Total 65W Power)

S1009-8P-96W 9 ports Network Switch with 8 PoE Ports (Total 96W Power)

S1009-8P-135W 9 ports Network Switch with 8 PoE Ports (Total 135W Power)
