Five Port Fast Poe Switch - China

S1005E-P

5 RJ-45 10/100M ports POE switch with power adapter

Product Description:

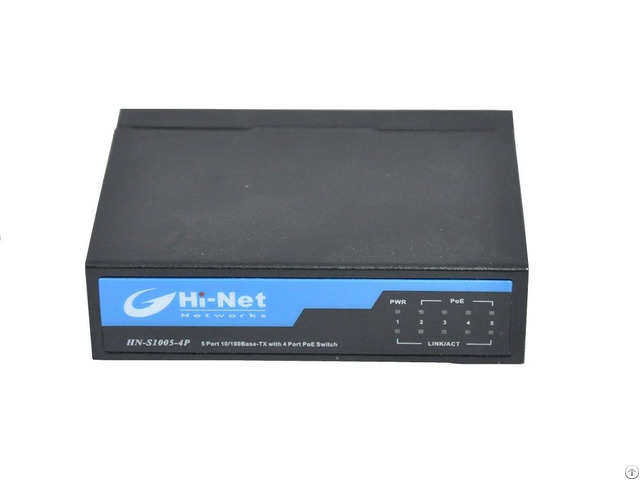

The S1005E-P is a 5 ports Power-over-Ethernet (POE) switch which is designed by Hi-Net Technology Company.

It provides 5 10/100Mbps Auto-Negotiation RJ45 ports and 4 ports with POE function (Port 2-5).

The POE ports can automatically detect and supply power for the IEEE802.3af/at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

The S1005E-P is a small size metal-shell device which is useful for the small office, home and the IP solution project using.

All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max.

Three optional power supplies for your choice (65W, 96W, 135W, can choose from the order list).

Extend Function: Port Lightning protection, Power lightning protection, solid vlan.

Products Features:

• IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

• Provides 5 10/100Base-TX ports

• 4 POE Ports (Ports 2-5), Each POE port output 30W max power

• High back-plane bandwidth 1Gbps

• Reliable Power Adapter supply power for both network switch and POE

• Three optional power adapters: 65W, 96W, 135W

• 1K entry MAC address table of the PoE switch with auto-learning and auto-aging

• IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode

• Surge protection for power port and data ports

• Supports PoE IEEE 802.3af or IEEE802.3at compliant Powered Device (PD)

• Compact metal case for desktop or wall-mounting.

• EMI standards complies with FCC, CE class B

• Extend Function: Port Lightning protection, Power lightning protection, solid vlan.

Products Specifications:

Item Description

Summarize

Fixed port 5 10/100Mbps RJ45 port

POE Port 4 PoE ports (Port 2-5)

LED Indicators PWR, PoE, Link/Act LED.

Input voltage 100V～240V AC, 50/60Hz (for power adapter)

48VDC (for switch)

Network Media 10BASE-TX: UTP category 5, 5e cable (≤250m)

100BASE-TX: UTP category 5, 5e cable (≤150m)

Forwarding Rate 10BASE-T: 14880pps/port

100BASE-TX: 148800pps/port

Power Supplies 65W, 96W, 135W Optional

Operating temperature 0℃～40℃.

Storage temperature -10℃～70℃.

Relative humidity 20%～85% (non-condensing).

Thermal methods Fanless

Switching capacity 1G.

MAC address table 1K.

Traffic control IEEE 802.3x full-duplex flow control.

Package Size 19.1*14.1*6.4cm

Weight <2Kg

Package S1005E-P POE switch

User Manual

Warranty Card

Power Adapter

Power Cable

PoE

PoE port 4 10/100Base-TX ports.

PoE Standard IEEE802.3af, IEEE802.3at, per port 15.4W, max 30W

Pin assignment V+ (RJ45 Pin 3, 6), V- (RJ45 Pin 1, 2).

Extend Function Port Lightning protection, Power lightning protection, solid vlan.

Order Information

S1005E-4P-65W 5 ports network Switch with 4 PoE Ports(Total Power 65W)

S1005E-4P-96W 5 ports network Switch with 4 PoE PortsTotal Power 96W)

S1005E-4P-135W 5 ports network Switch with 4 PoE Ports(Total Power 135W)
