High Temperature Waterproof Gen2 Oem Rfid Uhf Anti Metal Tag - China

price: contact company for price

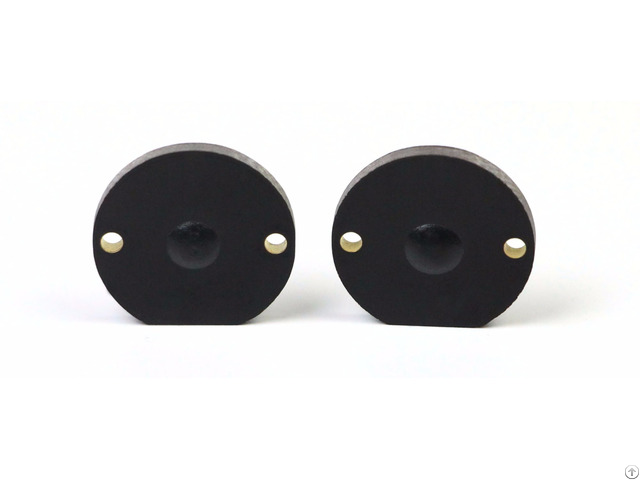

High Temperature Waterproof Gen2 Oem Rfid Uhf Anti Metal Tag

Products Photos Catalog Temperature Waterproof Photos Catalog

OPPD20 Functional Specifications:

RFID Protocol: EPC Class1 Gen2, ISO18000-6C

Frequency: US 902-928MHz, EU 865-868MHz

IC type: Alien Higgs-3

Memory: EPC 96bits (Up to 480bits), USER 512bits, TID64bits

Write Cycles: 100, 000times

Functionality: Read/wri te

Data Retention: Up to 50 Years

Applicable Surface: Metal Surfaces

Read Range :

(Fix Reader: ThingMagic M6-E, 36dBm/4W) 320cm - (US) 902-928MHz, on metal

280cm - (EU) 865-868MHz, on metal

Read Range(On Metal) :

(Handheld Reader: OP9908, R2000, 33dBm/2W)

240cm - (US) 902-928MHz, on metal

230cm - (EU) 865-868MHz, on metal

Warranty: 1 Year OPPD20 Physical Specification:

Size: Diameter 20mm, (Hole: D2mm*2)

Thickness: 2.0mm without IC bump, 2.8mm with IC bump

Material: FR4 (PCB)

Colour: Black (Red, Blue, Green, White)

Mounting Methods: Adhesive, Screw

Weight: 1.0g OPPD20 Enivironmenal Specification:

IP Rating: IP68

Storage Temperature: -40°C to +150°C

Operation Temberture: -40°C to +100°C

Certifications: Reach Approved, RoHS Approved, CE Approved


Company Contact:


  • Phone: 05942790031

  • Address: 2104 Room SANDI International Finance Centre,, 249# MingXin Street LongQiao,, ChengXiang Putian City, putian , fujian , China

  • Email: Email


Published date: December 21, 2017

  • Business Description: OPP IOT is a high-new technical enterprise dedicated into RFID industry development.

    We keeps developing and innovating in RFID field, especially the remarkable achievement--- UHF special tags.
