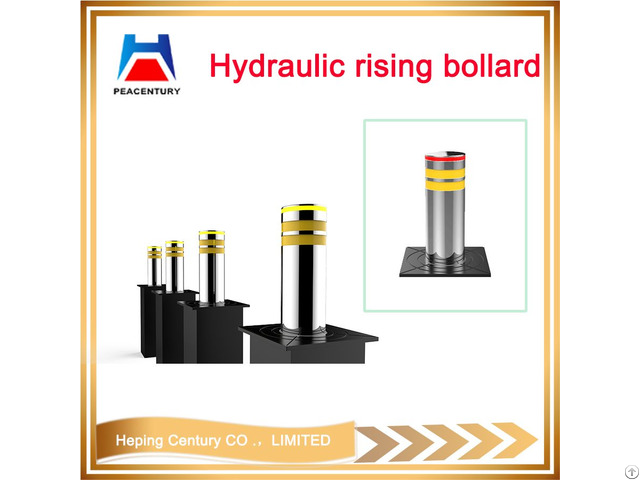

Hot Sale Removable Traffic Manual Type Bollrad Reflective Flexible Rising Bollard - China

NAME: Hydraulic Rising Bollard BRAND NAME: PEACENTURY

LIFTING COLUMN DIAMETER (MM): 219 (error ± 2mm) DIMENSIONS: LENGTH * WIDTH * HEIGHT (MM): 360 * 360 * 1080 (error ± 10mm)

LIFTING COLUMN CYLINDER THICKNESS (MM): 6 (can Be Customized According To Customer Needs) LIFTING HEIGHT (MM): 600 (error ± 2mm)

LIFTING TIME (SECONDS): 2~6 PRESSURE CAPACITY: 120 Tons Of Container Trucks

ANTI-COLLISION FORCE: K12 PROTECTION LEVEL: Up To IP68

ANTI-DESTRUCTION LEVEL: Up To M30~M50 WORKING TEMPERATURE (°C): -40~+75

STORAGE ENVIRONMENT: -10 ° C --- 75 ° C, Rain And Moisture Proof DRIVE UNIT: Two-way Integrated Hydraulic

WEIGHT (KG): 180 POWER SUPPLY (V): AC110-240V, 50Hz

RUNNING NOISE: ≤60 Db REMOTE CONTROL DISTANCE: Approx .

50m-100m

RISE TIME: ≤3-4S (adjustable) FALL TIME: ≤3-4S (adjustable)

CONTROL SYSTEM: Integrated Electro- Hydraulic MATERIAL: 304 Stainless Steel

Hot sale Removable traffic manual type bollrad reflective flexible rising bollard This is new designed electric-hydraulic operated retractable bollard for roadblock management.

The system can be quickly and easily operated, suitable for both security and access control applications.

The system is designed to bring convenience and enhancements to higher level security.

It is ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.

Features: Different thickness of steel is available (default 6 mm)

Different color is available

Customized size is available

Steady and safe due to the OMRON PLC control system

Speedy rising time and durable quality with hydraulic pressure

Lowering down the bollard by handle valve, in case of power failure or fault of automatic system

Raising up the bollard by handle pump, in case of power failure or fault of automatic system

Housing with durable and stainless Galvanization Optimization of frame structure, high anti-impact capability, high loading capability High security and anti-collision ability With a reflective band and a low energy consumption LED light at night Parameters: Product name Electric automatic bollard

Control system electric-hydraulic operated

Maximum weight of passing cars ≤8 T

Power supply 220 V (control voltage: 24V)

System power 1.5kW / 2.2kW

Rising time ≤ 4 s (adjustable)

Dropping time ≤ 2 s (adjustable)

Working temperature -35°C ~75°C

Material #304 stainless steel

Diameter of pillar 219mm (168mm, 275mm, 324mm are also available)

Thickness of housing 6mm(8mm, 10 mm are also available)
