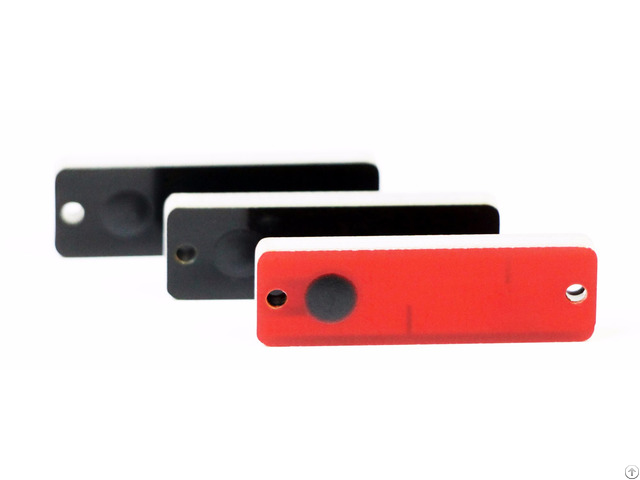

Micro Gen2 Long Read Distance Uhf Rfid Metal Tag With H3 Chip - China
price: contact company for price
OPP3310 Key Benefits
1 - Rugged encapsulation for harsh environments
2 - Apply to the EPC Gen2 and ISO18000-6 protocol
3 - Used in the metal surface with ultra-high performance and can be applied to other surfaces
4 - Reusable for lower cost per use
5 - Long-term work at -40℃ to +150℃ temperature
Functional Specifications:
RFID Protocol: EPC Class1 Gen2, ISO18000-6C
Frequency: US 902-928MHz, EU 865-868MHz
IC type: Alien Higgs-3
Memory: EPC 96bits (Up to 480bits), USER 512bits, TID64bits
Write Cycles: 100, 000times
Functionality: Read/wri te
Data Retention: Up to 50 Years
Applicable Surface: Metal Surfaces
Read Range:
(Fix Reader: ThingMagic FU-M6-E, 30dBm) Up to 4.2m - (US) 902-928MHz, on metal
Up to 3.5m - (EU) 865-868MHz, on metal
Read Range(On Metal):
(Handheld Reader: OP9908, R2000, 30dBm)
Up to 2.8m - (US) 902-928MHz, on metal
Up to 2.5m - (EU) 865-868MHz, on metal
Warranty: 1 Year Physical Specification:
Size: 33mmx10mm (Hole: D2mm)
Thickness: 3.5mm
Material: FR4 (PCB)
Colour: Black (Red, Blue, Green, White)
Mounting Methods: Adhesive, Screw
Weight: 3.0g Enivironmenal Specification:
IP Rating: IP68
Storage Temperature: -40°C to +150°C
Operation Temberture: -40°C to +100°C
Certifications: Reach Approved, RoHS Approved, CE Approved
Company Contact:
- Posted By: OPP IOT Technologies Co., Ltd.
- Phone: 05942790031
- Address: 2104 Room SANDI International Finance Centre,, 249# MingXin Street LongQiao,, ChengXiang Putian City, putian , fujian , China
- Email:
- Website: http://www.oppiot.com
Published date: December 22, 2017
- Business Description: OPP IOT is a high-new technical enterprise dedicated into RFID industry development.
We keeps developing and innovating in RFID field, especially the remarkable achievement--- UHF special tags.
