Size 30 5mm Uhf Rfid Tag With H3 Chip Ce Rohs Iso1800 6c Gen2 - China

price: contact company for price

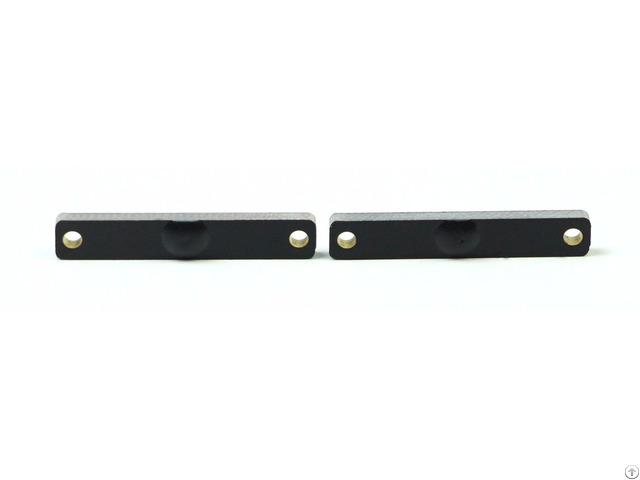

Size 30 5mm Uhf Rfid Tag With H3 Chip Ce Rohs Iso1800 6c Gen2

Products Photos Catalog 5mm Uhf Rfid Tag Chip Photos Catalog

OPP3005 Functional Specifications:

RFID Protocol: EPC Class1 Gen2, ISO18000-6C

Frequency: US 902-928MHz, EU 865-868MHz

IC type: Alien Higgs-3

Memory: EPC 96bits (Up to 480bits), USER 512bits, TID64bits

Write Cycles: 100, 000times

Functionality: Read/wri te

Data Retention: Up to 50 Years

Applicable Surface: Metal Surfaces

Read Range(On Metal) :

(Fix Reader: ThingMagic M6-E, 36dBm/4W) 310cm - (US) 902-928MHz, on metal

280cm - (EU) 865-868MHz, on metal

Read Range :

(Handheld Reader: OP9908, R2000, 33dBm/2W)

210cm - (US) 902-928MHz, on metal

200cm - (EU) 865-868MHz, on metal

Warranty: 1 Year OPP3005 Physical Specification:

Size: 30x5mm, (Hole: D2mm*2)

Thickness: 2.0mm without IC bump, 2.8mm with IC bump

Material: FR4 (PCB)

Colour: Black (Red, Blue, Green, White)

Mounting Methods: Adhesive, Screw

Weight: 0.8g OPP3005 Enivironmenal Specification:

IP Rating: IP68

Storage Temperature: -40°C to +150°C

Operation Temberture: -40°C to +100°C

Certifications: Reach Approved, RoHS Approved, CE Approved


Company Contact:


  • Phone: 05942790031

  • Address: 2104 Room SANDI International Finance Centre,, 249# MingXin Street LongQiao,, ChengXiang Putian City, putian , fujian , China

  • Email: Email


Published date: December 21, 2017

  • Business Description: OPP IOT is a high-new technical enterprise dedicated into RFID industry development.

    We keeps developing and innovating in RFID field, especially the remarkable achievement--- UHF special tags.
