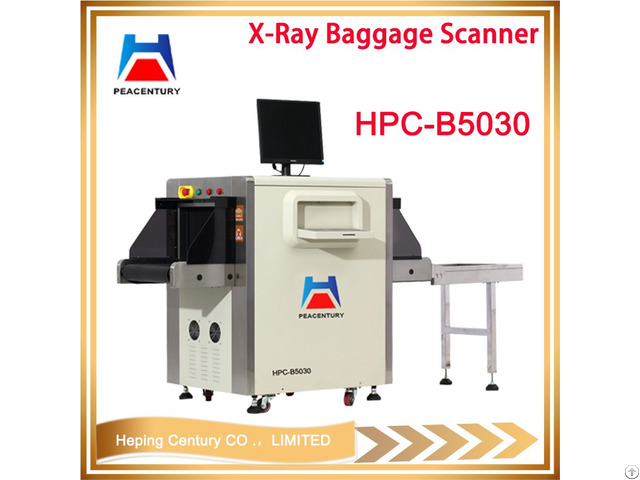

Tip Function Auto Operation Hpc B5030 Small Size Dual Energy Xray Baggage Scanner - China

Tunnel size: 500 (w) *300 (h) mm conveyor speed: 0.22m/s

type: single energy conveyor: 100 kg

steel penetration: 10mm wire resolution: 40awg

warranty: 2 years product name: x-ray baggage scanner

tip function auto operation hpc-b5030 small size dual energy xray baggage scanner metro / hotel / train station / public places model: hpc-b5030 general specifications tunnel size : 500 (w) ×300 (h) mm conveyor speed: 0.22m/s conveyor max load: 100 kg single inspection dosage: < 1.32μgy wire resolution: 40awg steel penetration: 40mm film safety: for iso 1600 x-ray generator orientation: upward tube current: 0.4~0.7ma(adjusta ble) anode voltage: 80kv(adjustable) angle: 60° generator cooling/working periods: sealed oil bath with forced air/100% operating environment storage temperature: -20oc to 60oc operating temperature: 0oc to 45oc relative humidity: 20 to 95% non-condensing system power: 220 vac (±10%) 50±3hz power wastage: 1.0 kw (max) noise<65db x-ray sensor: l-shaped array detector 24bit single energy image performance system: display: high-resolution 19 inch color lcd display color quality: 24-bit real colors based on materials edge enhancement: object contour edge is more distinct super image enhancement: image detail is more distinct high penetration display: increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly low penetration display: increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

magnifier: partial magnifying function brightening/dimming: increase/decrease brightness of image image recurrence: display the previous twenty images and process any one of them image restoration: restore image to initial status image storage: real-time store any image and process it in operation status special features: network interface: capable of connecting to lan, and support multi-terminal check for baggage at same time safety ray: ray is transmitted under automatic control, avoiding the error one-key shutdown control: just rotate the key to shut down the machine; it is safety, easy and convenient eagle eye: capable of expediently observing the magnifying area self-diagnosis function: give message automatically if malfunction for prompt maintenance tip function auto operation hpc-b5030 small size dual energy xray baggage scanner

Company Contact:

• Posted By: Shenzhen Heping Century Technology Co., Ltd

• Phone: +8617820602014

• Address: Longgang District, Shenzhen , Guangdong , China

• Email:

• Business Description: SHENZHEN HEPING CENTURY TECHNOLOGY CO., LTD （PEACENTURY）is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine technology, metal detection technology, explosive detection, liquid detection and relative security services.

  We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

  We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .

  Business Type：Manufacturer& International Trading Company

  Location：Shenzh en，China (Mainland)

  Main Products：Walk Through Metal Detector，X-Ray Baggage Scanner，Hand Held Metal Detector，Under Vehicle Inspection System，Hydraulic Rising Bollard，Hydraulic Road Blocker，Tire Killer，Gold Detector，Barrier Gate etc.
