Under Vehicle Monitoring System With Anpr Camera In Border Checkpoints - China

NAME: Under Vehicle Surveilance System USEING: Checking Under Vehicle

SCAN RESOLUTION: 2048 Line CCD CHASSIS STORAGE OR LOADING TIME: < 1 Second

DISPLAY OF SCENE IMAGE: ≥1 Road RESOLUTION OF THE BOTTOM IMAGE: >12000 * 6144

THE MAXIMUM OF SCAN RATE: 18kHz FIELD OF VIEW: 170 Degrees

AUXILIARY LIGHTING: 160W SCANNING DEVICE VOLUME: 450 X 400 X 88mm

MONITOR: 22 Bits Real Colors

Under vehicle monitoring system with ANPR camera in border, checkpoints Main Features Auto digital line scan, high-resolution undercarriage imaging High automation, easy to be used Applicable to variety of vehicles, wide vision.

Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.

Undercarriage image can be stored, retrieved, searched or compared with other images.

Variety of image processing methods: enlarge, stretching and cutting.

(Optional)ALPR-Automatic License Plate Recognition and RFID technology.

associative storage of various vehicle information and undercarriage images.

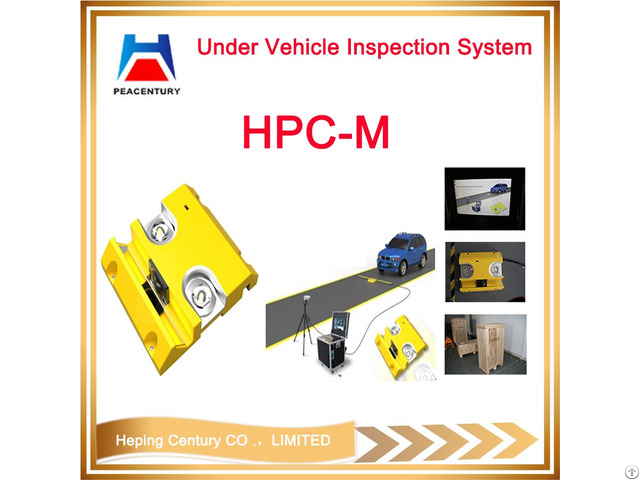

HPC-M Parameters

Store or load time

<

1 second

Vehicle Image local magnification

>

2 times

Vehicle Image scaling

times

16 Main performance parameters

System interface language

(can be customized)

English

Scene image display

≥

1 channel

Vehicle speed

1-60km/h, suggest speed

less than 30km/h Hydraulic system

View angle

degrees

175

Image Longitudinal resolution

pixels CCD

2048

Power Supply

Hz

AC110V-240V/50-60 Computer systerm: Display 22 inch color LCD Screen

CPU INTEL core Quad-Core Processor

Motherboard dedicated motherboard

Memory DDR3, more than 4GB

Hard disk 500G high-speed hard disk

Graphics card DDR3, 192BIT independent graphics

Appearance stainless steel composite material

Working current 3A

Working temperature -20 ℃ ~ 55 C
